Products > MIL Spec Connector > Threaded MS3102A18-11S 5Pin Female Box Mounting Receptacle Solder Cup
![](https://staging.renhotec.com/wp-content/uploads/2024/04/MS3102A18-11S_6614f4dd4f112.jpg)
![](https://staging.renhotec.com/wp-content/uploads/2024/04/MS3102A18-11S_6614f4dd4f112.jpg)

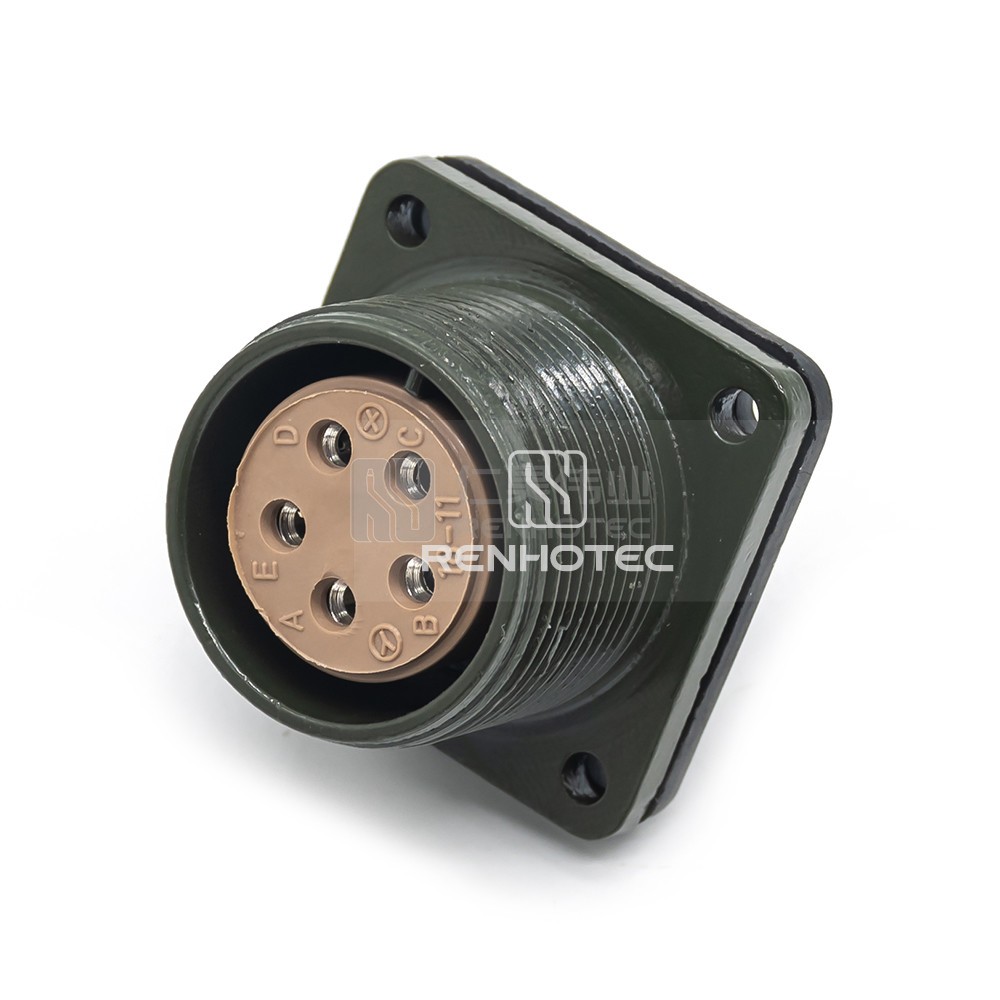

MS3102A18-11S
Threaded MS3102A18-11S 5Pin Female Box Mounting Receptacle Solder Cup- Overview
- Technical data
- Certification
- Download
Product certification
Product excerpt
High-quality Threaded MS3102A18-11S 5Pin Female Box Mounting Receptacle Solder Cup for secure and reliable connections. Ideal for industrial applications.
GeneralShellMechanicalMaterialElectricalEnvironmental
General | |
---|---|
Connector Type | Receptacle |
Orientation | Straight |
Contact Type | Female Pin |
Number of Positions | 5 |
Contact Arrangements | 18-11 |
Contact Termination | Solder Cup |
Key | N |
Color | Olive Green |
Shell | |
---|---|
Shell Size | 18 |
Mechanical | |
---|---|
Fastening Type | Threaded |
Mounting Type | Panel Mount |
Mounting Feature | Flange |
Wire Gauge or Range | 14-12AWG |
Material | |
---|---|
Shell Material | Aluminum Alloy |
Shell Finish | Olive Drab Cadmium |
Electrical | |
---|---|
Shielding | Unshielded |
Rated Current | 30A |
Rated Voltage | 500V |
Environmental | |
---|---|
Operating Temperature | -55°C ~ + 125°C |
Certification
MS5015 Test Report | Download |
