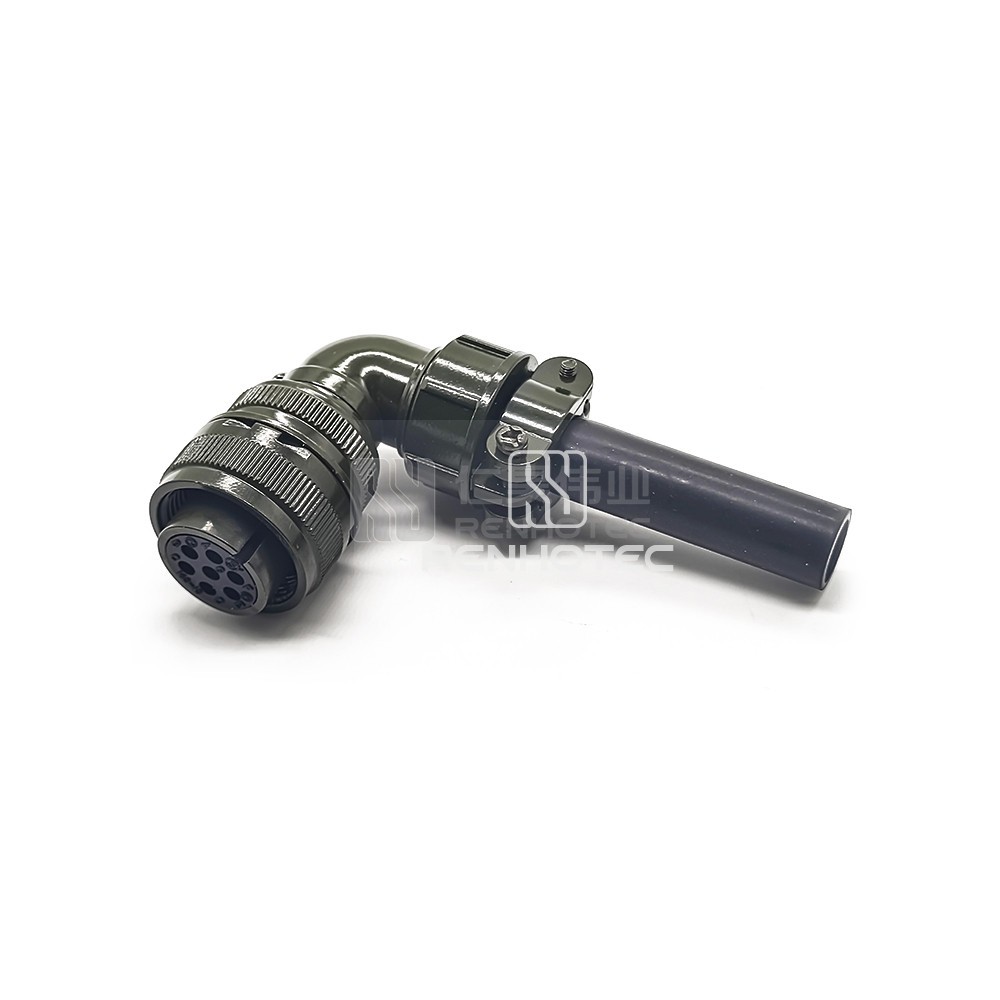

MS3108A16S-1P
Threaded MS3108A16S-1P 7Pin Female Right Angle Plug Solder Cup- Overview
- Technical data
- Certification
- Download
Product certification
Product excerpt
High-quality threaded MS3108A16S-1P 7-pin female right angle plug with solder cup contacts. Ideal for secure and reliable electrical connections in various applications.
GeneralShellMechanicalMaterialElectricalEnvironmental
General | |
---|---|
Connector Type | Plug |
Orientation | Right Angle |
Contact Type | Male Pin |
Number of Positions | 7 |
Contact Arrangements | 16S-1 |
Contact Termination | Solder Cup |
Key | N |
Color | Olive Green |
Shell | |
---|---|
Shell Size | 16S |
Mechanical | |
---|---|
Fastening Type | Threaded |
Mounting Type | Cable Type |
Wire Gauge or Range | 20-16AWG |
Material | |
---|---|
Shell Material | Aluminum Alloy |
Shell Finish | Olive Drab Cadmium |
Electrical | |
---|---|
Shielding | Unshielded |
Rated Current | 15A |
Rated Voltage | 500V |
Environmental | |
---|---|
Operating Temperature | -55°C ~ + 125°C |
Certification
MS5015 Test Report | Download |
