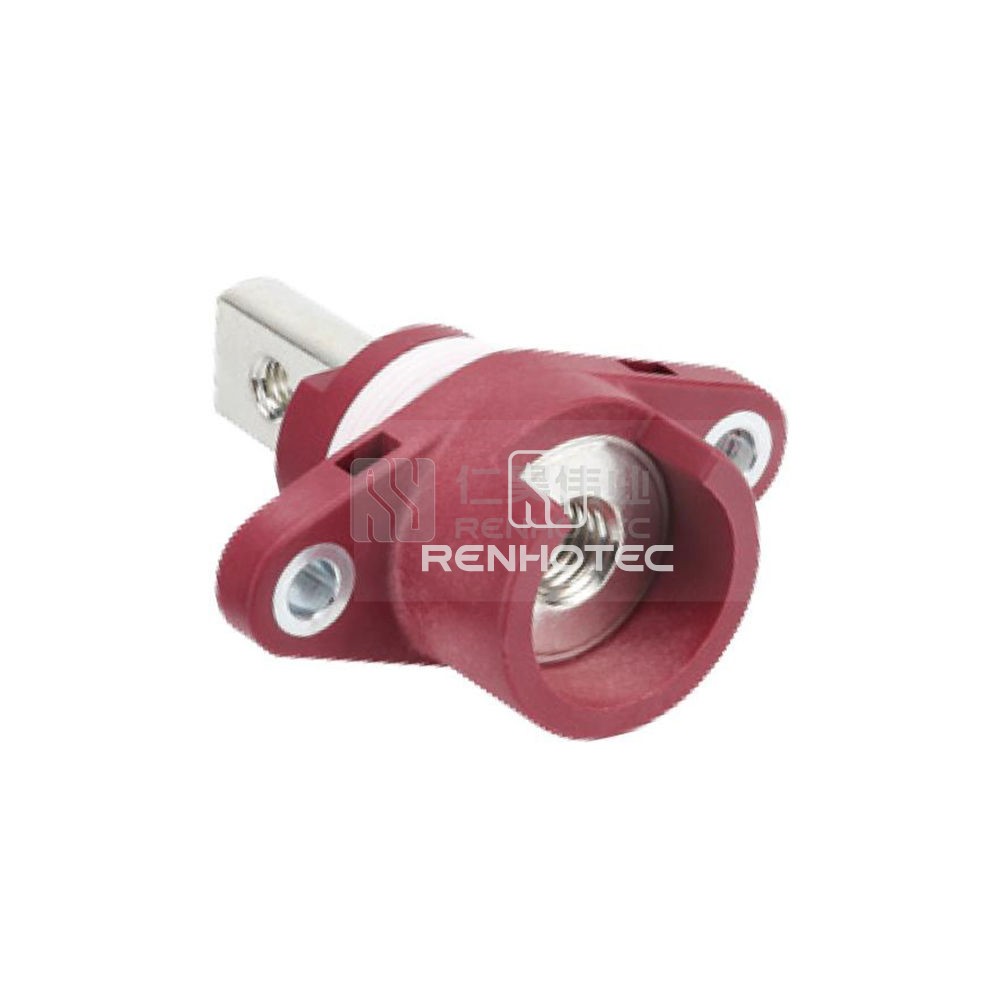

Products > Terminal Blocks > Single Stud Type Junction Blocks 150A Internal Screw (M8) Busbar with M5
Flange Mounting Red
![](https://staging.renhotec.com/wp-content/uploads/2024/03/IF-FM8M5-5225-51-150A-R_660393c55951a.jpg)
![](https://staging.renhotec.com/wp-content/uploads/2024/03/IF-FM8M5-5225-51-150A-R_660393c55951a.jpg)
IF-FM8M5-5225-51-150A-R
Single Stud Type Junction Blocks 150A Internal Screw (M8) Busbar with M5 Flange Mounting Red- Overview
- Technical data
- Certification
- Download
Product excerpt
Explore our Single Stud Type Junction Blocks with 150A capacity and robust internal screw connection. Designed for easy installation with an M5 flange mounting in a striking red color, these busbars are perfect for various electrical applications.
GeneralMechanicalElectricalMaterialEnvironmental
General | |
---|---|
Body Style | Studded |
Contact Termination | Busbar/Screw |
Color | Red |
Mechanical | |
---|---|
Termination Thread | M8 |
Mounting Type | Panel Mount |
Mounting Feature | Bulkhead |
Electrical | |
---|---|
Rated Voltage | 600V |
Rated Current | 150A |
Material | |
---|---|
Contact Material | Brass |
Contact Finish | Tin |
Insulating Material | PA66 |
Environmental | |
---|---|
Operating Temperature | -40°C ~ + 125°C |
Flammability | UL94 V-0 |
