IF-T555-B

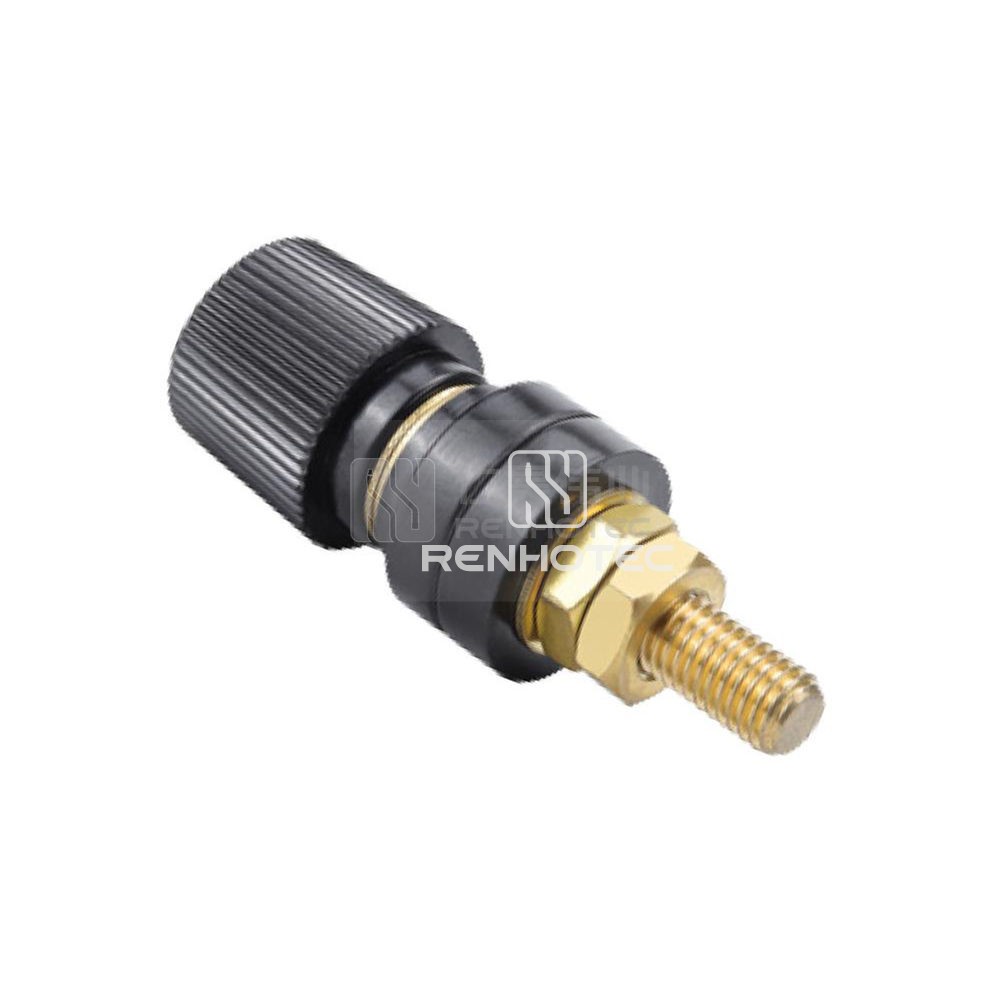

Binding Post Terminal Connectors 160A Outer Screw(M10) Black- Overview
- Technical data
- Certification
- Download
Product excerpt
Enhance your electrical connections with these high-quality Binding Post Terminal Connectors. With a 160A rating and an outer screw design (M10), these black connectors provide secure and stable connections for various applications. Ideal for use in automotive, marine, or industrial settings.
GeneralMechanicalElectricalMaterialEnvironmental
General | |
---|---|
Body Style | Cylinder |
Contact Termination | Screw |
Color | Black |
Mechanical | |
---|---|
Termination Thread | M10 |
Mounting Type | Panel Mount |
Mounting Feature | Through Hole |
Electrical | |
---|---|
Rated Voltage | 250V |
Rated Current | 160A |
Material | |
---|---|
Contact Material | Brass |
Insulating Material | Bakelite |
Environmental | |
---|---|
Operating Temperature | -40°C ~ + 125°C |
Flammability | UL94 V-0 |
