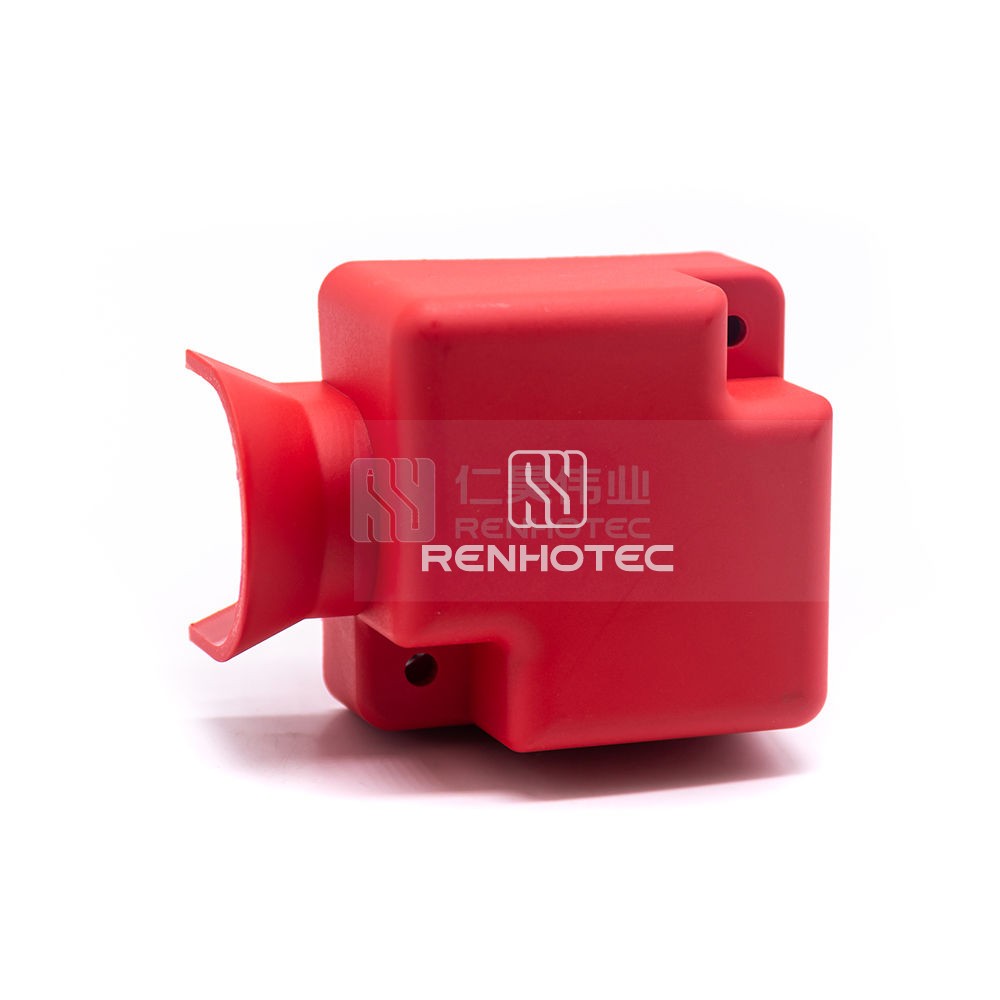

IF-FM8-56-4M-R
Feed Through Junction Blocks 200A Outer Screw(M8) Red- Overview
- Technical data
- Certification
- Download
Product excerpt
These 200A feed through junction blocks are designed with an outer screw connection (M8) in a vibrant red color. Ideal for secure electrical connections in various applications, they offer high amperage capacity and reliable performance.
GeneralMechanicalElectricalMaterialEnvironmental
General | |
---|---|
Body Style | Square |
Contact Termination | Busbar/Screw |
Color | Red |
Mechanical | |
---|---|
Termination Thread | M8 |
Mounting Type | Panel Mount |
Mounting Feature | Bulkhead |
Electrical | |
---|---|
Rated Voltage | 600V |
Rated Current | 200A |
Material | |
---|---|
Contact Material | Brass |
Contact Finish | Nickel |
Insulating Material | PBT |
Environmental | |
---|---|
Operating Temperature | -40°C ~ + 125°C |
Flammability | UL94 V-0 |
