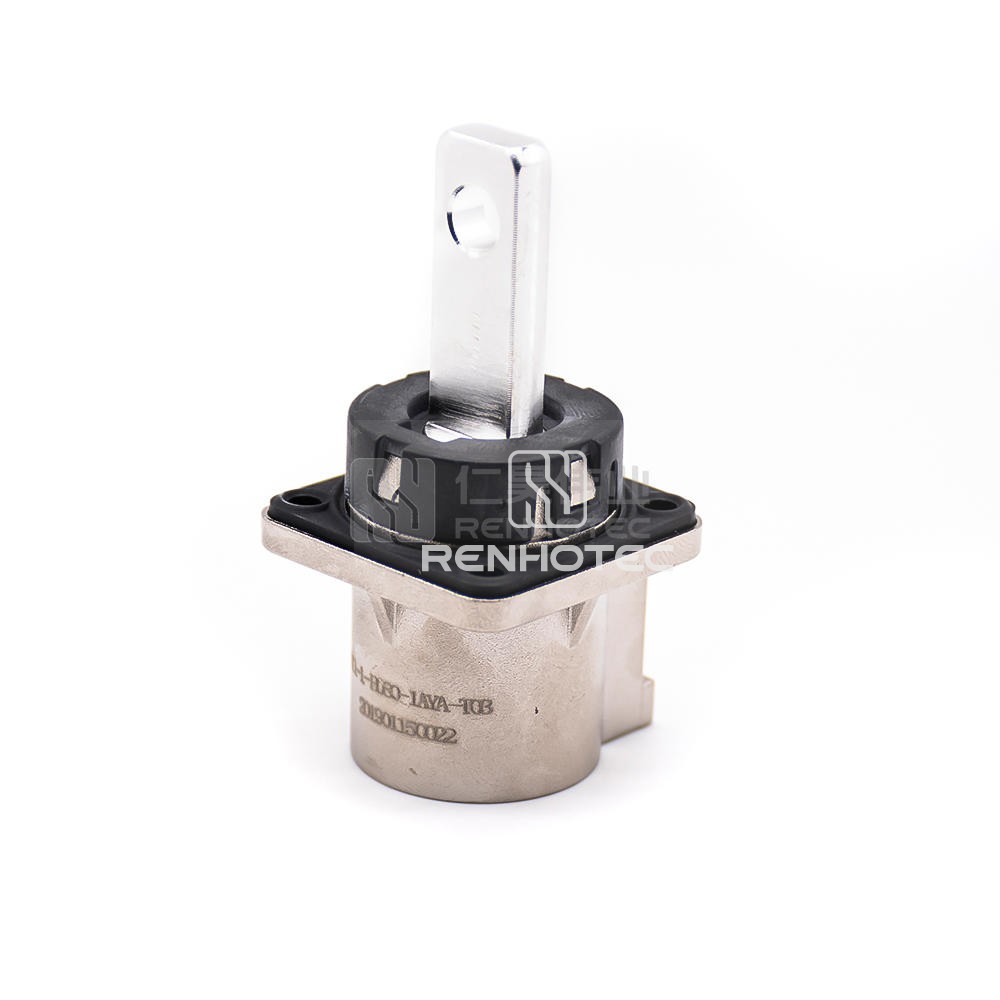

product image

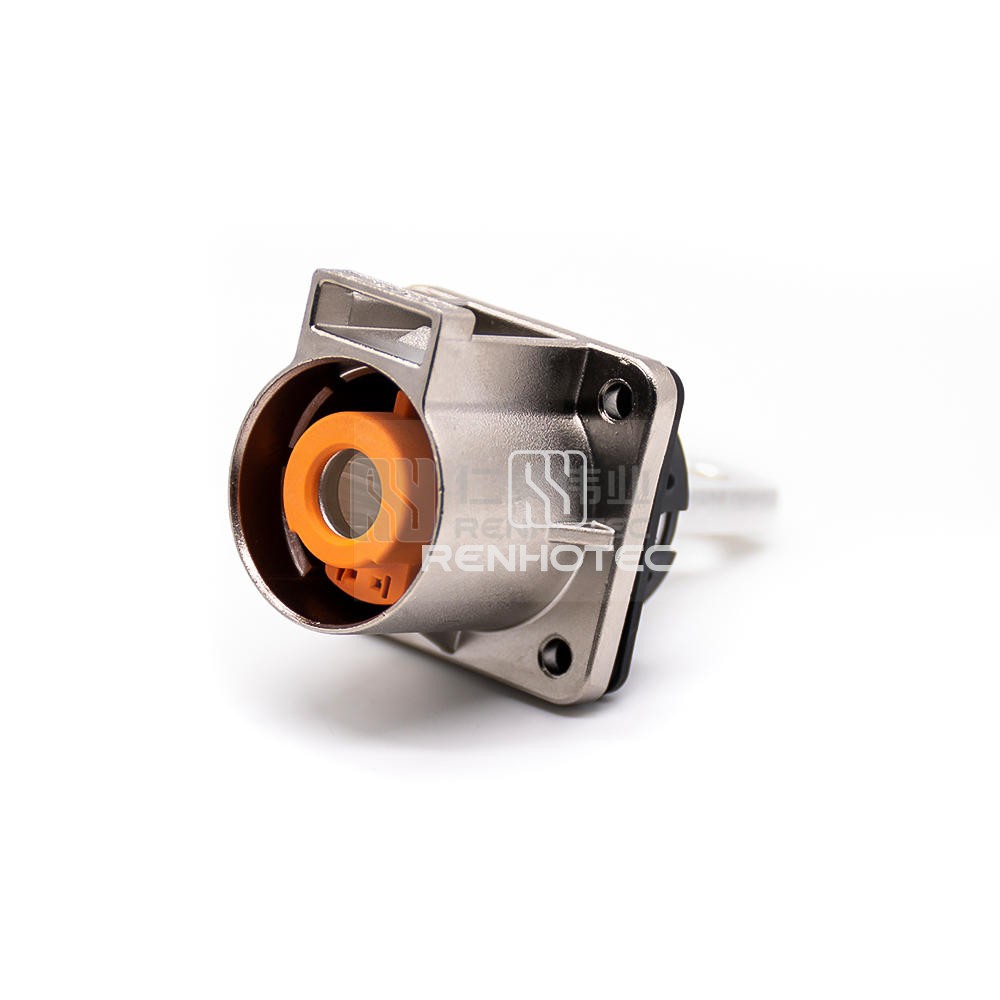

product image

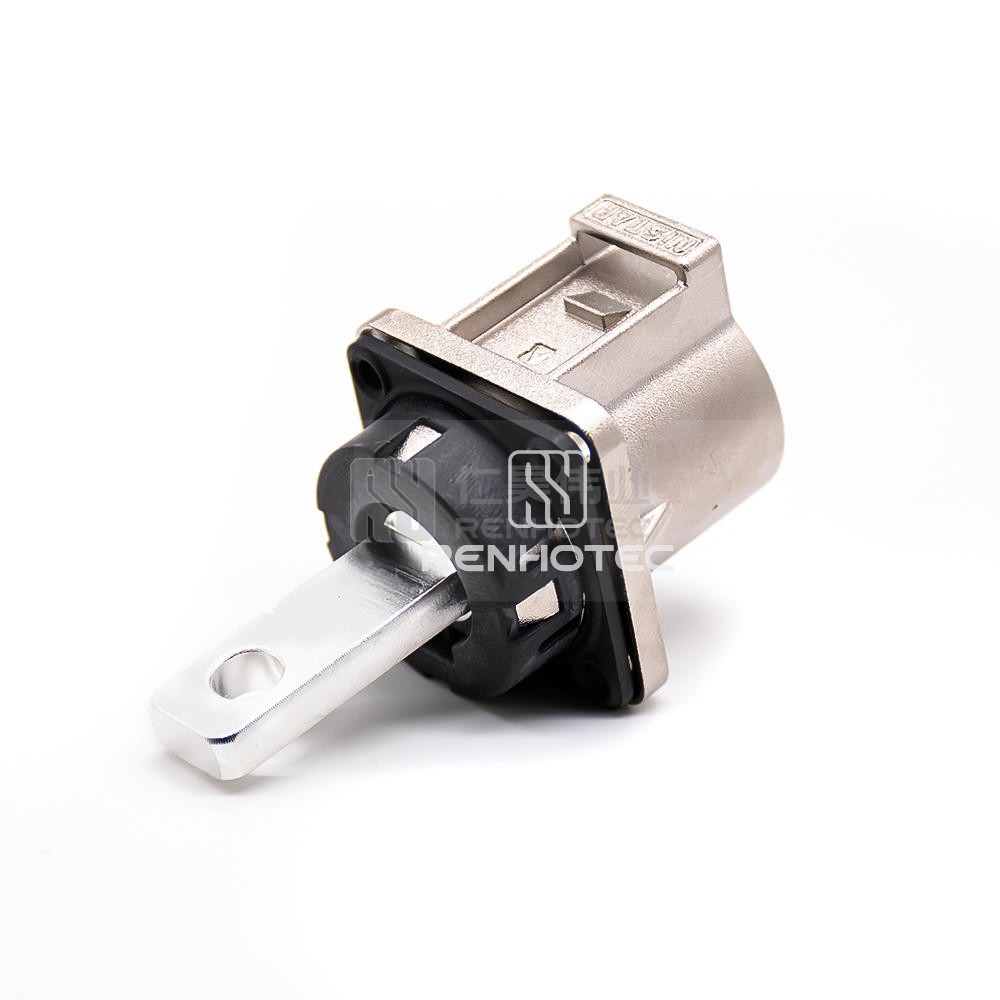

product image

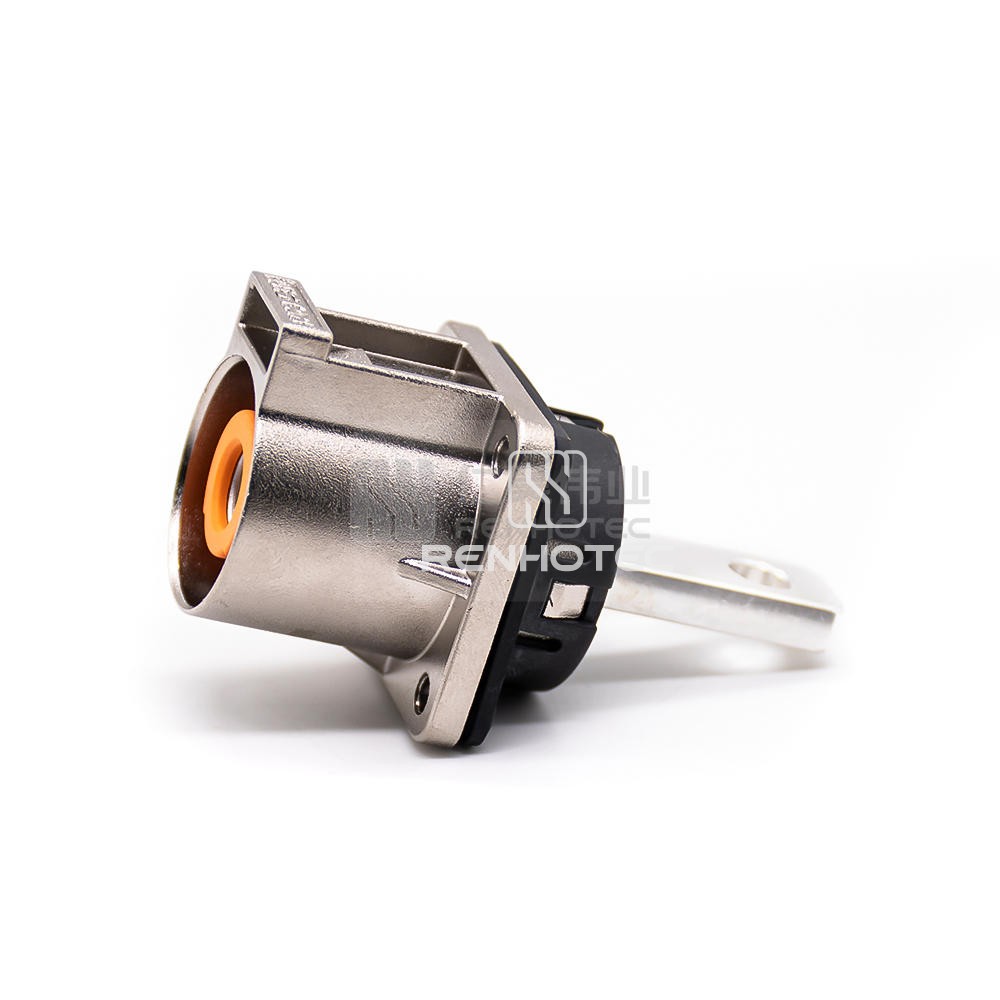

product image

NI1-1-H060-1AYA-T03

1 POS High Voltage Interlock Connector Metal Plug 125A φ6.5 Busbar Through Hole A Key Box Mount
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product certification

×

Product excerpt

Securely connect high voltage components with this 1-position metal plug interlock connector. Rated for 125A and featuring a φ6.5 busbar through hole design with A key box mount, this connector ensures reliable power transmission in critical applications.
GeneralElectricalMechanicalMaterialEnvironmental
General
Connector TypeReceptacle
OrientationStraight
Number of Positions1
Contact Size6mm
Contact TerminationBusbar
KeyA
ColorSilver
FeaturesIntegrated Internal HVIL
Electrical
Rated Voltage800V
Rated Current125A
ShieldingShielded
Mechanical
Mounting TypePanel Mount
Mounting FeatureFour Flange
Material
Shell MaterialZinc Alloy
Contact MaterialCopper Alloy
Contact FinishNickel
Environmental
Ingress ProtectionIP67
Operating Temperature-40°C ~ + 125°C
FlammabilityUL94 V-0
