Products > HVIL Series Connector > 4 POS High Power Electric Vehicle Cable Plug 70A 10mm² Shielded Cable Z Key Straight
FHV601436TZ-10S01

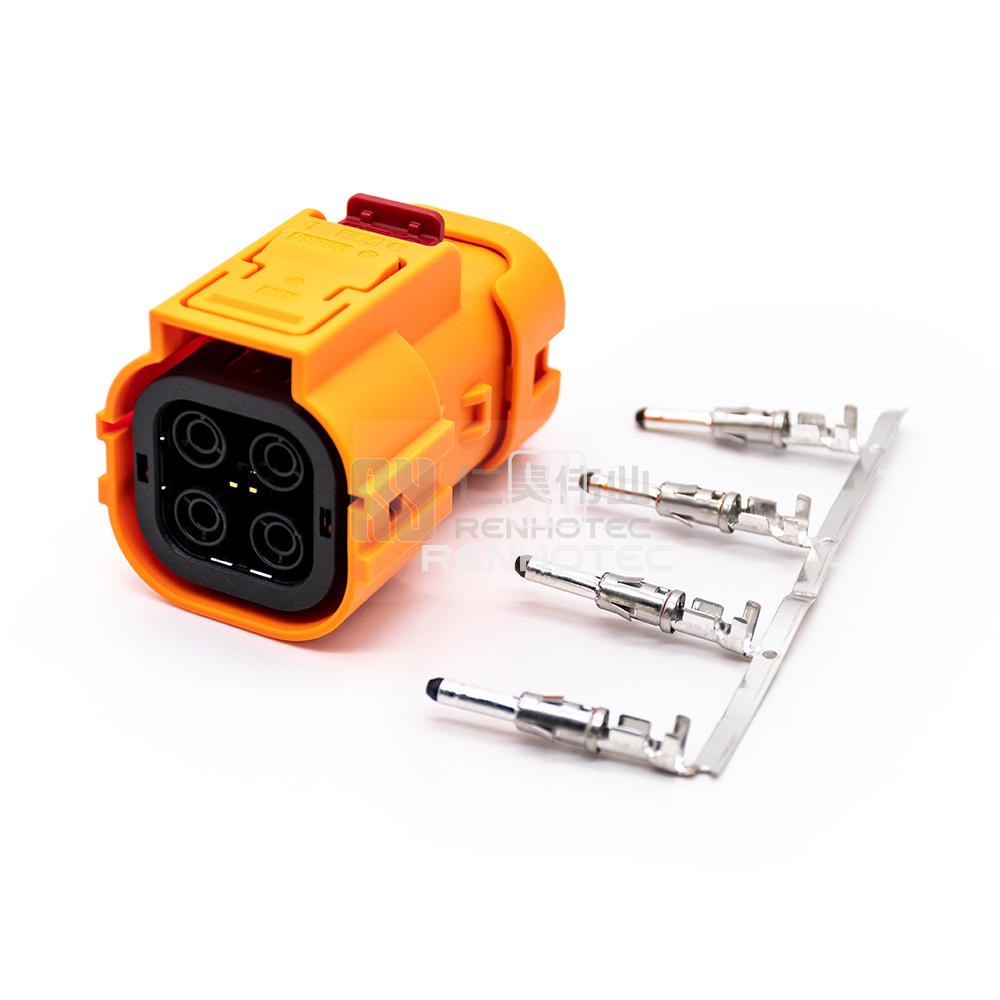

4 POS High Power Electric Vehicle Cable Plug 70A 10mm² Shielded Cable Z Key Straight- Overview
- Technical data
- Certification
- Download
GeneralElectricalMechanicalMaterialEnvironmental
| General | |
|---|---|
| Connector Type | Plug |
| Orientation | Straight |
| Number of Positions | 4 |
| Contact Termination | Crimp |
| Key | Z |
| Color | Orange |
| Electrical | |
|---|---|
| Rated Voltage | 1000V |
| Rated Current | 70A |
| Shielding | Shielded |
| Mechanical | |
|---|---|
| Mounting Type | Cable Type |
| Wire Gauge or Range | 10mm² |
| Material | |
|---|---|
| Shell Material | PA66 |
| Contact Material | Copper Alloy |
| Contact Finish | Nickel |
| Environmental | |
|---|---|
| Ingress Protection | IP67 |
| Operating Temperature | -40°C ~ + 125°C |
| Flammability | UL94 V-0 |
Certification
| High Voltage Interlock Connectors CE | Download |
