Products > Terminal Blocks > Single Stud Type Junction Blocks 150A Internal Screw (M8) Busbar with M5
Flange Mounting Red With Cap
![](https://staging.renhotec.com/wp-content/uploads/2024/03/IF-FM8M5-3543-150A-C-R_660393afc577a.jpg)
![](https://staging.renhotec.com/wp-content/uploads/2024/03/IF-FM8M5-3543-150A-C-R_660393afc577a.jpg)

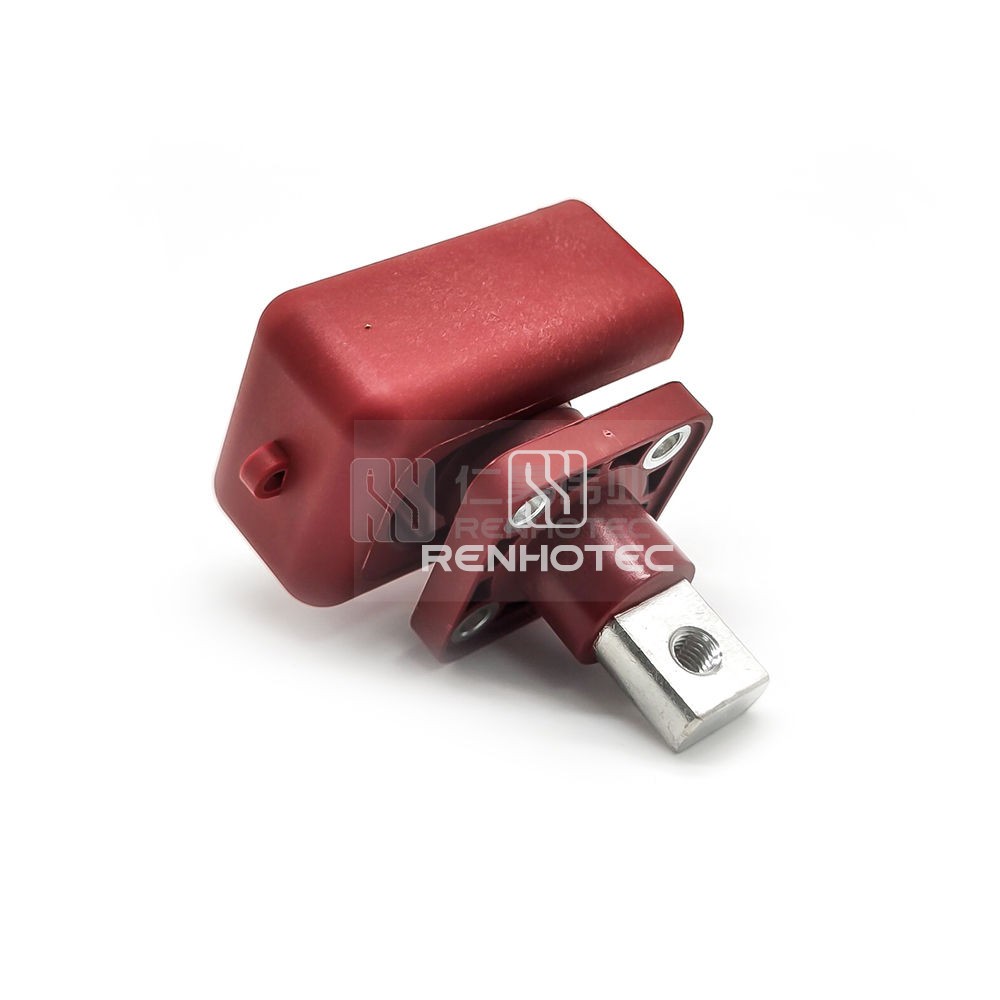

IF-FM8M5-3543-150A-C-R
Single Stud Type Junction Blocks 150A Internal Screw (M8) Busbar with M5 Flange Mounting Red With Cap- Overview
- Technical data
- Certification
- Download
Product excerpt
Efficiently designed for secure electrical connections, the Single Stud Type Junction Blocks offer 150A capacity with an internal M8 screw and M5 flange mounting, enhancing stability. The vibrant red color adds easy identification, and the included cap provides extra protection. Ideal for various electrical applications.
GeneralMechanicalElectricalMaterialEnvironmental
General | |
---|---|
Body Style | Studded |
Contact Termination | Busbar/Screw |
Color | Red |
Features | With Cover |
Mechanical | |
---|---|
Termination Thread | M8 |
Mounting Type | Panel Mount |
Mounting Feature | Bulkhead |
Electrical | |
---|---|
Rated Voltage | 600V |
Rated Current | 150A |
Material | |
---|---|
Contact Material | Brass |
Contact Finish | Tin |
Insulating Material | PA66 |
Environmental | |
---|---|
Operating Temperature | -40°C ~ + 125°C |
Flammability | UL94 V-0 |
