ST517100-A

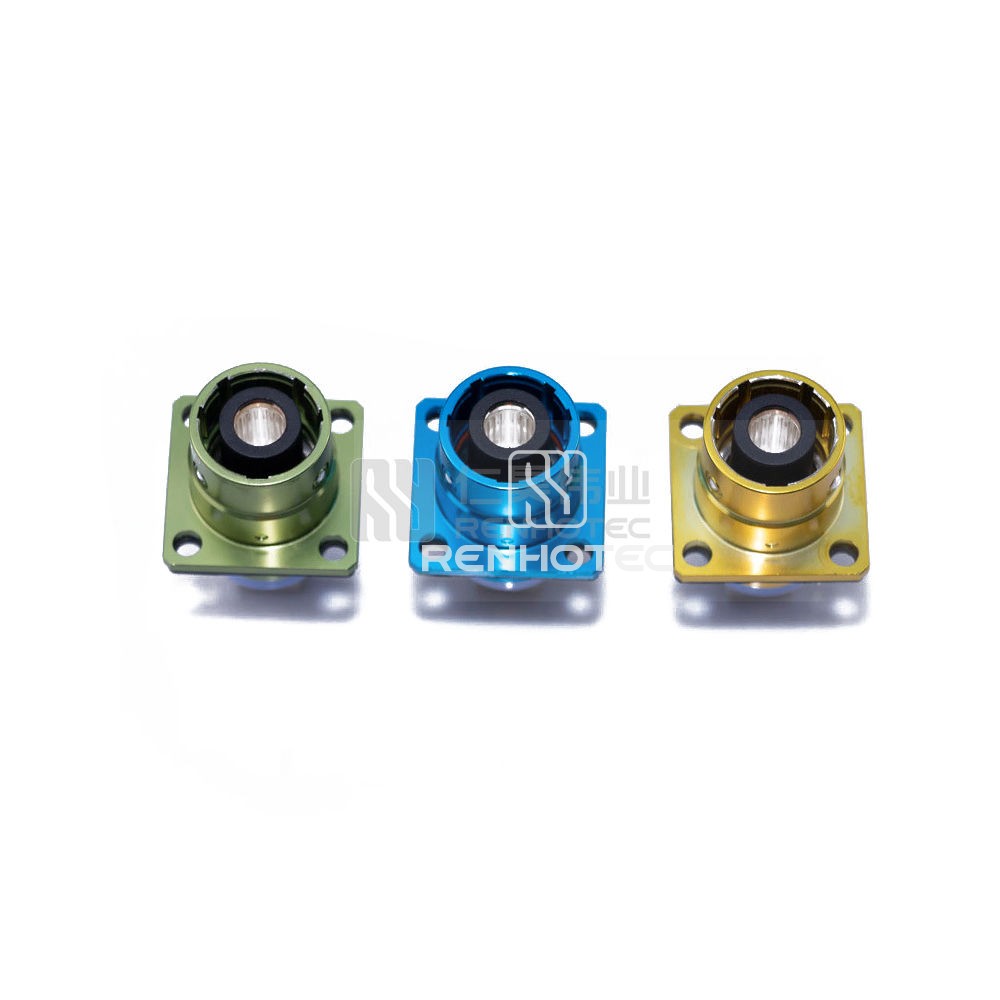

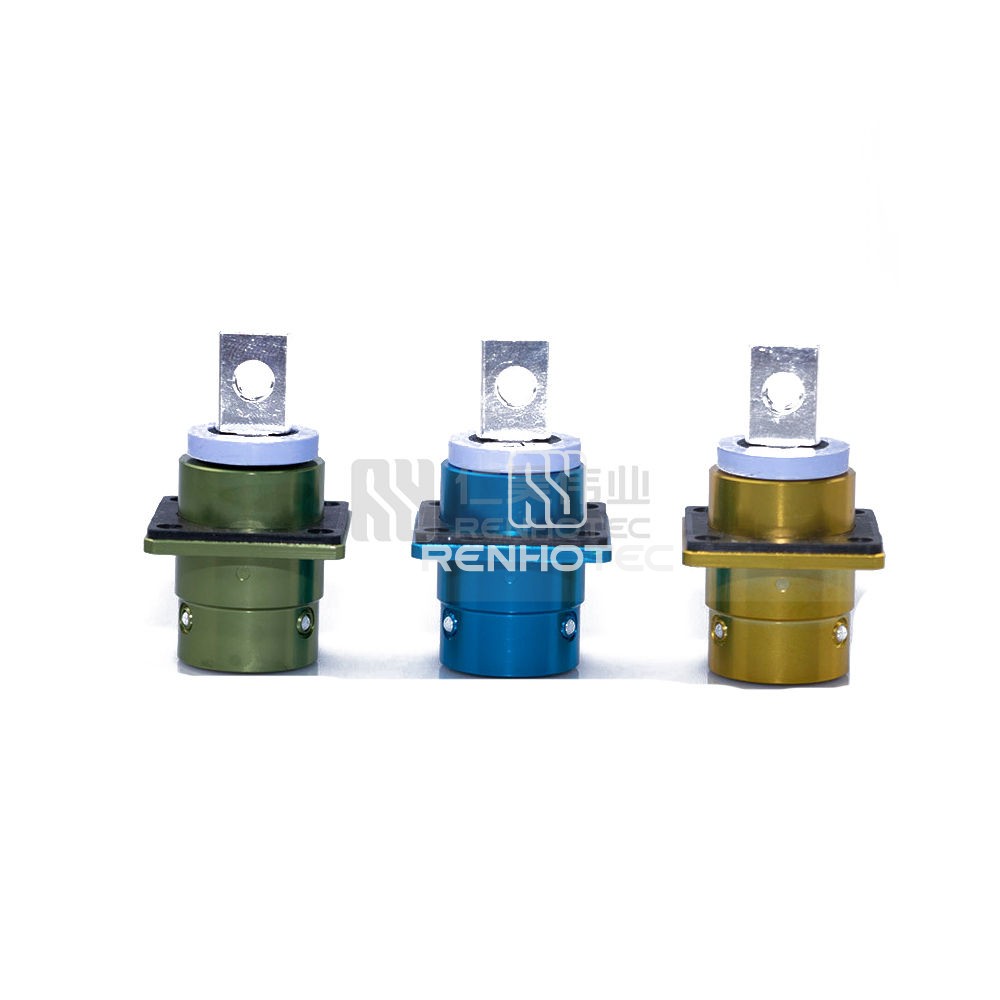

1 POS High Power Electric vehicle connector Socket 250A Busbar Lug A Key Box Mount
Get a Quote
- Overview
- Technical data
- Certification
- Download
Product certification
Product excerpt
This high power electric vehicle connector socket with 250A busbar lug and key box mount is designed for applications including high voltage power distribution, battery pack, motor controller, electric air conditioning, and electric heater. It offers a reliable and efficient solution for various electrical components in electric vehicles.
GeneralElectricalMechanicalMaterialEnvironmental
General | |
---|---|
Connector Type | Receptacle |
Orientation | Straight |
Number of Positions | 1 |
Contact Size | 8mm |
Contact Termination | Busbar |
Key | A |
Color | Light Green |
Features | Waterproof |
Electrical | |
---|---|
Rated Voltage | 800V |
Rated Current | 250A |
Shielding | Shielded |
Mechanical | |
---|---|
Mounting Type | Panel Mount |
Mounting Feature | Four Flange |
Material | |
---|---|
Shell Material | Aluminum Alloy |
Contact Material | Copper Alloy |
Contact Finish | Nickel |
Shell Finish | Nickel Plated |
Environmental | |
---|---|
Ingress Protection | IP67 |
Operating Temperature | -40°C ~ + 125°C |
