Products > HVIL Series Connector > 2 POS High Power Electric vehicle connector Socket 250A Busbar Lug A Key Box Mount
![](https://staging.renhotec.com/wp-content/uploads/2024/03/ST515320-A_66069134e0c02.jpg)
![](https://staging.renhotec.com/wp-content/uploads/2024/03/ST515320-A_66069134e0c02.jpg)

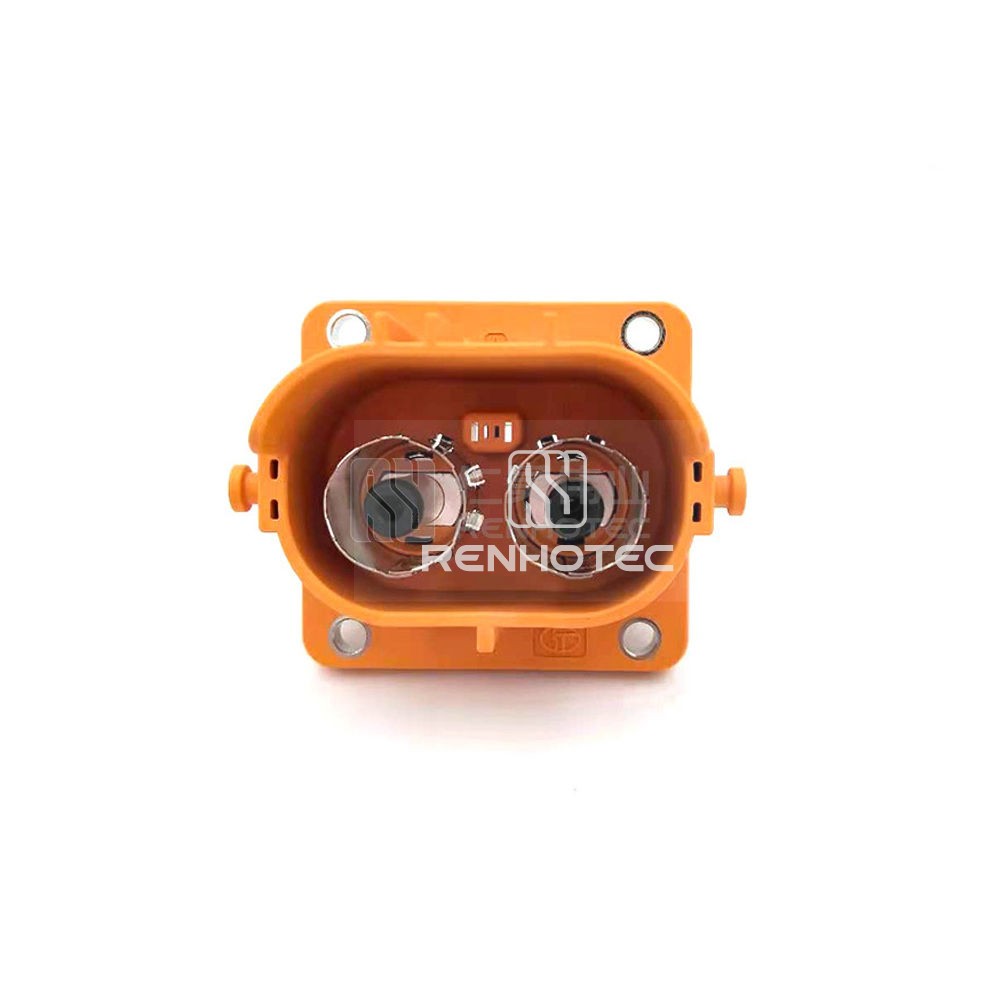

ST515320-A
2 POS High Power Electric vehicle connector Socket 250A Busbar Lug A Key Box Mount- Overview
- Technical data
- Certification
- Download
Product certification
Product excerpt
This 250A electric vehicle connector socket is perfect for high voltage power distribution, battery pack, motor controller, electric air conditioning, and electric heater applications. Its key box mount design ensures convenient and secure usage.
GeneralElectricalMechanicalMaterialEnvironmental
General | |
---|---|
Connector Type | Receptacle |
Orientation | Straight |
Number of Positions | 2 |
Contact Size | 9mm |
Contact Termination | Busbar |
Key | A |
Color | Orange |
Features | Waterproof |
Electrical | |
---|---|
Rated Voltage | 1500V |
Rated Current | 250A |
Shielding | Shielded |
Mechanical | |
---|---|
Mounting Type | Panel Mount |
Mounting Feature | Four Flange |
Material | |
---|---|
Shell Material | PA66+GF |
Contact Material | Copper Alloy |
Contact Finish | Silver |
Environmental | |
---|---|
Ingress Protection | IP67 |
Operating Temperature | -40°C ~ + 125°C |
Flammability | UL94 V-0 |
Certification
High Voltage Interlock Connectors CE | Download |
