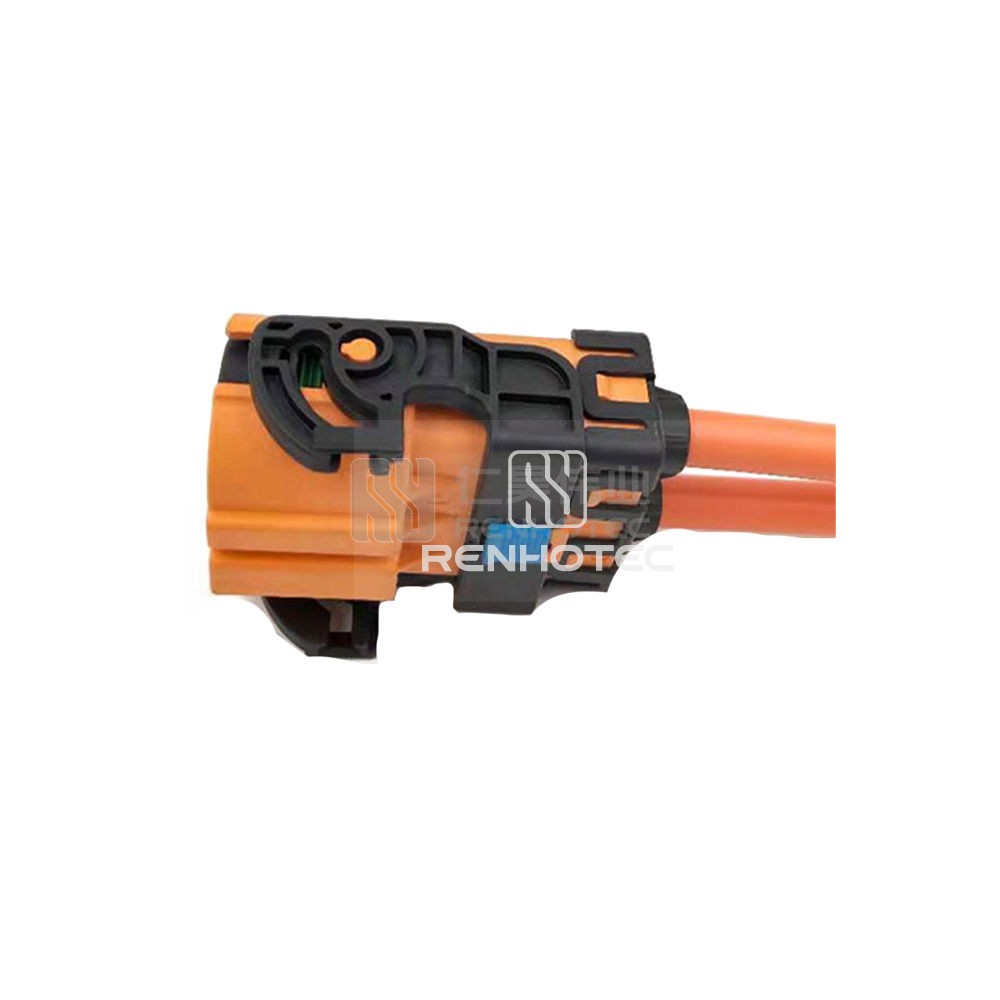

Products > HVIL Series Connector > 2 POS High Power Electric vehicle Cable Plug 250A 50mm2 Shielded Cable A Key Straight
![](https://staging.renhotec.com/wp-content/uploads/2024/03/ST515300-A-50_660691316ac22.jpg)
![](https://staging.renhotec.com/wp-content/uploads/2024/03/ST515300-A-50_660691316ac22.jpg)
ST515300-A-50
2 POS High Power Electric vehicle Cable Plug 250A 50mm2 Shielded Cable A Key Straight- Overview
- Technical data
- Certification
- Download
Product certification
Product excerpt
This high power electric vehicle cable plug features a 250A capacity and 50mm² shielded cable, ideal for applications like high voltage power distribution, battery packs, motor controllers, electric air conditioning, and electric heater systems.
GeneralElectricalMechanicalMaterialEnvironmental
General | |
---|---|
Connector Type | Plug |
Orientation | Straight |
Number of Positions | 2 |
Contact Size | 9mm |
Contact Termination | Crimp |
Key | A |
Color | Orange |
Features | Waterproof |
Electrical | |
---|---|
Rated Voltage | 1500V |
Rated Current | 250A |
Shielding | Shielded |
Mechanical | |
---|---|
Mounting Type | Cable Type |
Wire Gauge or Range | 50mm² |
Material | |
---|---|
Shell Material | PA66+GF |
Contact Material | Copper Alloy |
Contact Finish | Silver |
Environmental | |
---|---|
Ingress Protection | IP67 |
Operating Temperature | -40°C ~ + 125°C |
Flammability | UL94 V-0 |
Certification
High Voltage Interlock Connectors CE | Download |
