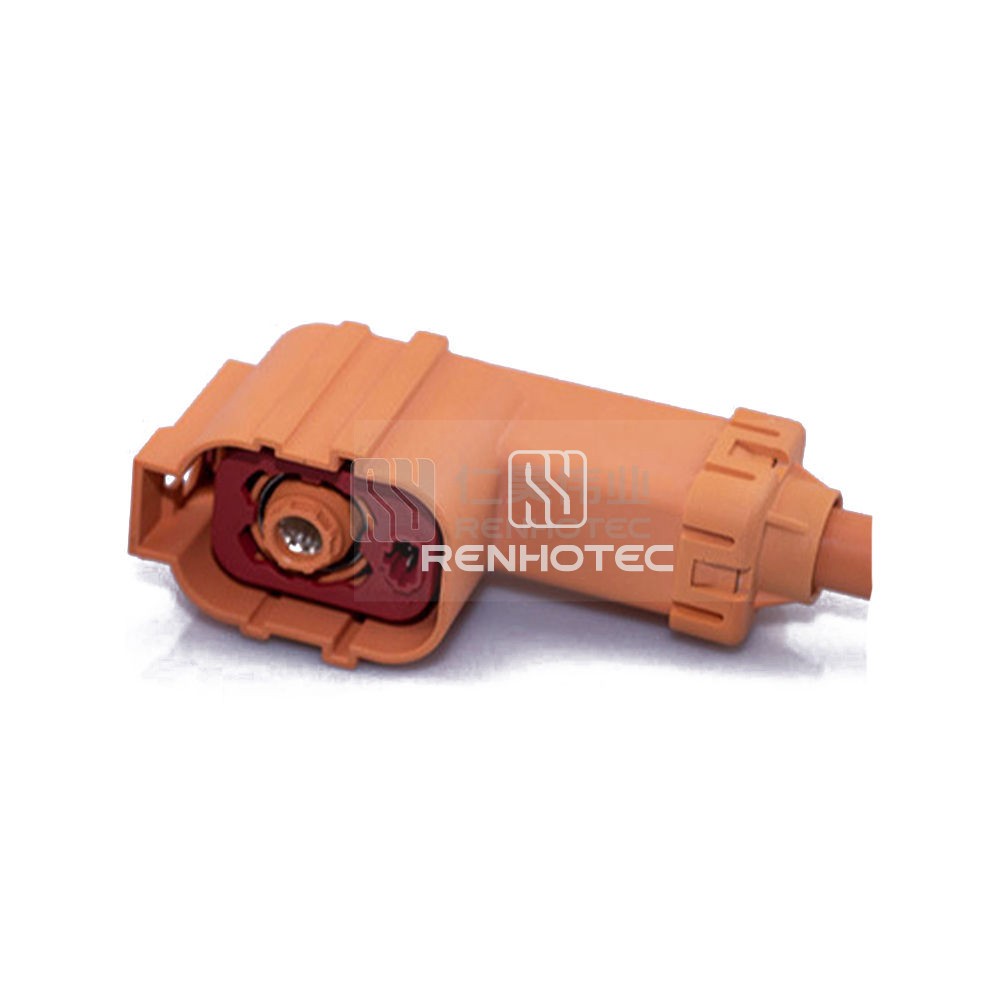

Products > HVIL Series Connector > 1 POS High Power Electric vehicle Cable Plug 250A 50mm2 Shielded Cable A Key Right Angle
ST522000-A-50
1 POS High Power Electric vehicle Cable Plug 250A 50mm2 Shielded Cable A Key Right Angle- Overview
- Technical data
- Certification
- Download
Product certification
Product excerpt
This high-quality electric vehicle cable plug is designed to meet the demands of high voltage power distribution, making it ideal for use in battery packs, motor controllers, electric air conditioning, and electric heaters. The shielded design and 250A capacity ensure efficient and reliable power transmission.
GeneralElectricalMechanicalMaterialEnvironmental
| General | |
|---|---|
| Connector Type | Plug |
| Orientation | Right Angle |
| Number of Positions | 1 |
| Contact Size | 8mm |
| Contact Termination | Crimp |
| Key | A |
| Color | Orange |
| Features | Waterproof |
| Electrical | |
|---|---|
| Rated Voltage | 1500V |
| Rated Current | 250A |
| Shielding | Shielded |
| Mechanical | |
|---|---|
| Mounting Type | Cable Type |
| Wire Gauge or Range | 50mm² |
| Material | |
|---|---|
| Shell Material | PA66+GF |
| Contact Material | Copper Alloy |
| Contact Finish | Silver |
| Environmental | |
|---|---|
| Ingress Protection | IP67 |
| Operating Temperature | -40°C ~ + 125°C |
| Flammability | UL94 V-0 |
Certification
| High Voltage Interlock Connectors CE | Download |
