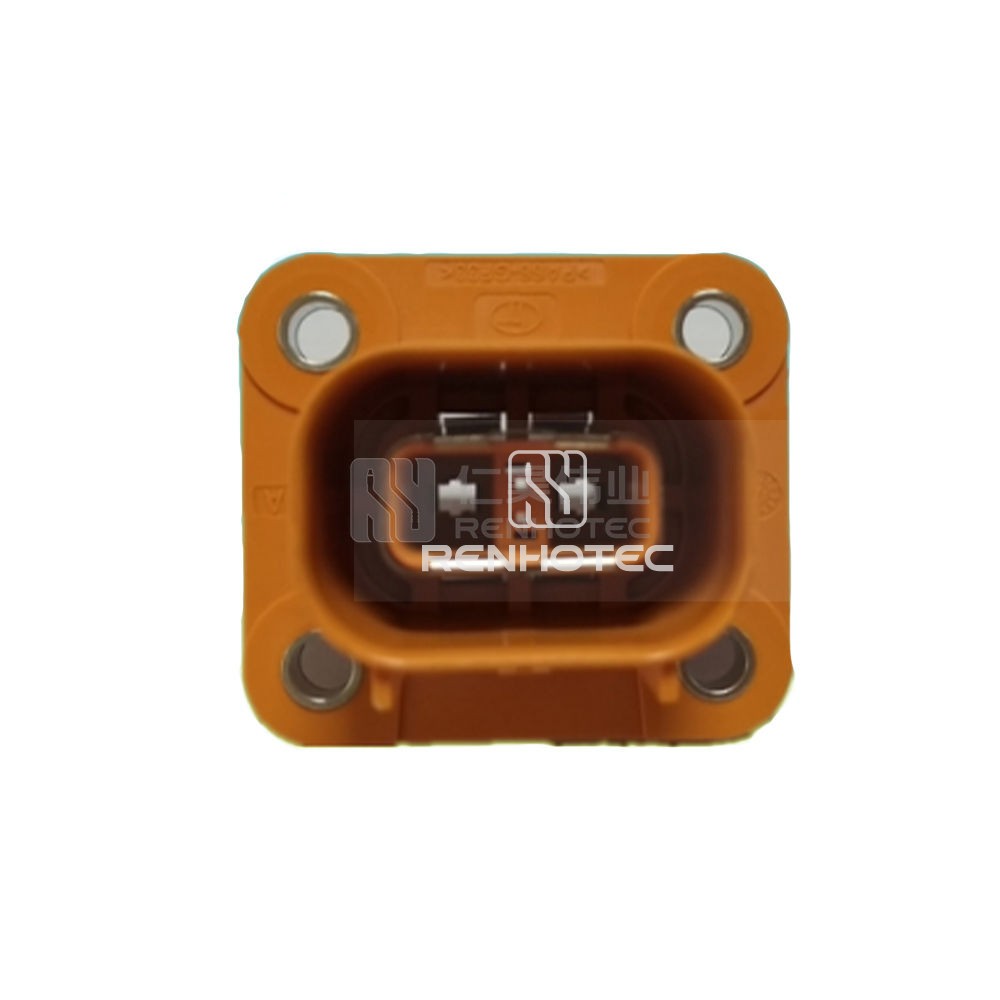

ST550000-A
2 POS High Power Electric vehicle connector Socket 16A 2.5mm2 Shielded Cable A Key- Overview
- Technical data
- Certification
- Download
Product certification
Product excerpt
This high power electric vehicle connector socket is designed for various applications such as high voltage power distribution, battery pack, motor controller, electric air conditioning, and electric heater. It offers 16A capacity with a shielded cable and A key for secure connections.
GeneralElectricalMechanicalMaterialEnvironmental
General | |
---|---|
Connector Type | Receptacle |
Orientation | Straight |
Number of Positions | 2 |
Contact Termination | Crimp |
Key | A |
Color | Orange |
Features | Waterproof |
Electrical | |
---|---|
Rated Voltage | 800V |
Rated Current | 16A |
Shielding | Shielded |
Mechanical | |
---|---|
Mounting Type | Panel Mount |
Mounting Feature | Four Flange |
Wire Gauge or Range | 2.5mm² |
Material | |
---|---|
Shell Material | PA66+GF |
Contact Material | Copper Alloy |
Contact Finish | Tin |
Environmental | |
---|---|
Ingress Protection | IP67 |
Operating Temperature | -40°C ~ + 125°C |
Flammability | UL94 V-0 |
Certification
High Voltage Interlock Connectors CE | Download |
