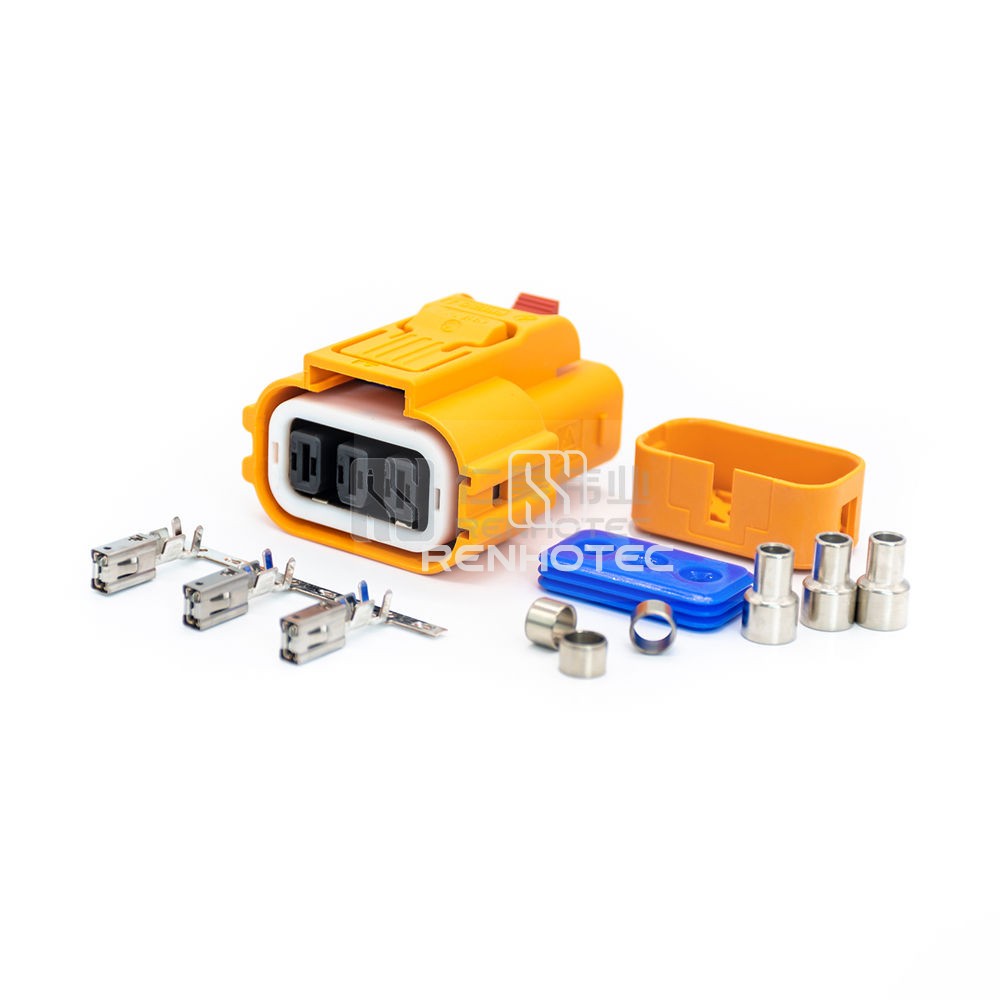

ST537000-A-2.5
3 POS High Power Electric vehicle Cable Plug 20A 2.5mm2 Shielded Cable A Key Straight- Overview
- Technical data
- Certification
- Download
Product certification
Product excerpt
This high-power electric vehicle cable plug features 3 POS design, 20A capacity, and shielded 2.5mm² cable with a straight A Key configuration. Ideal for electric vehicle charging applications.
GeneralElectricalMechanicalMaterialEnvironmental
General | |
---|---|
Connector Type | Plug |
Orientation | Straight |
Number of Positions | 3 |
Contact Termination | Crimp |
Key | A |
Color | Orange |
Features | Waterproof |
Electrical | |
---|---|
Rated Voltage | 800V |
Rated Current | 20A |
Shielding | Shielded |
Mechanical | |
---|---|
Mounting Type | Cable Type |
Wire Gauge or Range | 2.5mm² |
Material | |
---|---|
Shell Material | PA66+GF |
Contact Material | Copper Alloy |
Contact Finish | Tin |
Environmental | |
---|---|
Ingress Protection | IP67 |
Operating Temperature | -40°C ~ + 125°C |
Flammability | UL94 V-0 |
Certification
High Voltage Interlock Connectors CE | Download |
