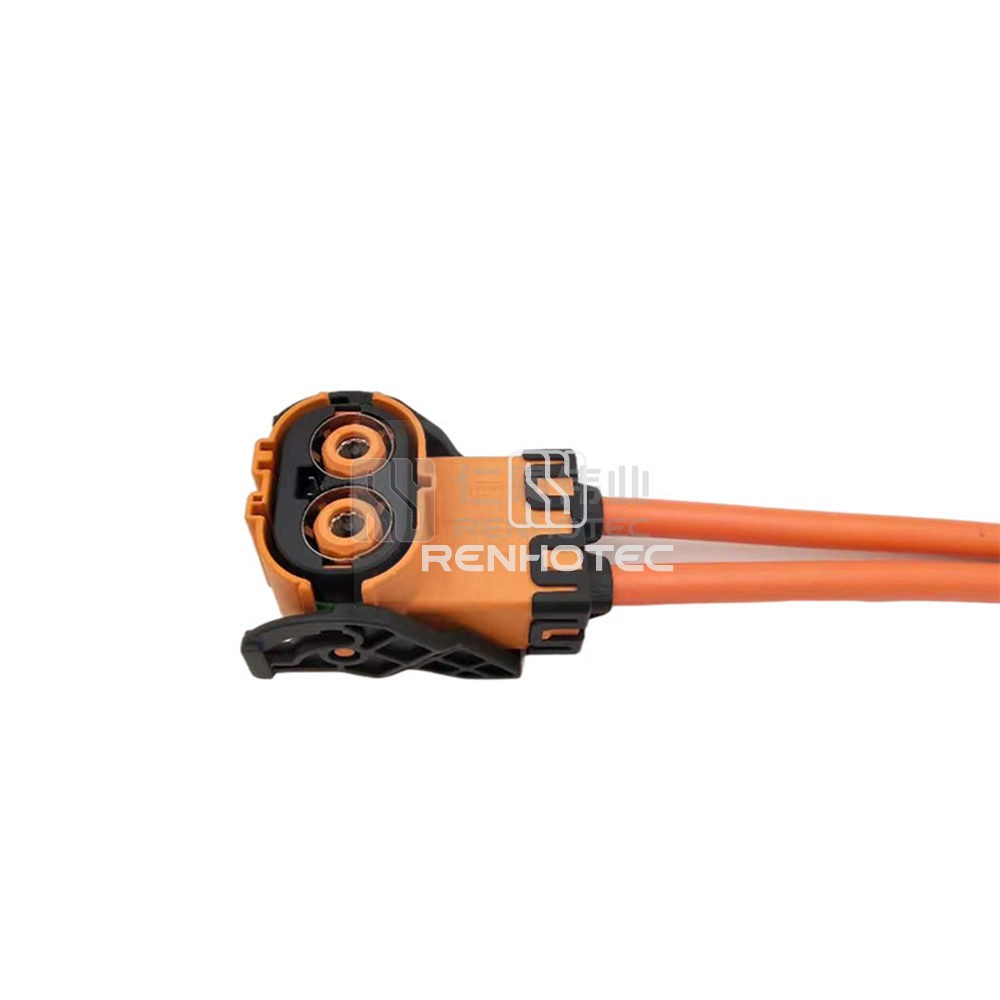

product image

ST515400-A-35

2 POS Plastic High Power Electric vehicle Cable Plug 200A 35mm2 Shielded Cable A Key Right Angle
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product certification

×

Product excerpt

This high power electric vehicle cable plug features a 200A capacity with a sturdy 35mm² shielded cable and a convenient right angle A key design. Ideal for use in electric vehicle charging applications.
GeneralElectricalMechanicalMaterialEnvironmental
General
Connector TypePlug
OrientationRight Angle
Number of Positions2
Contact Size9mm
Contact TerminationCrimp
KeyA
ColorOrange
FeaturesWaterproof
Electrical
Rated Voltage1500V
Rated Current200A
ShieldingShielded
Mechanical
Mounting TypeCable Type
Wire Gauge or Range35mm²
Material
Shell MaterialPA66+GF
Contact MaterialCopper Alloy
Contact FinishSilver
Environmental
Ingress ProtectionIP67
Operating Temperature-40°C ~ + 125°C
FlammabilityUL94 V-0
