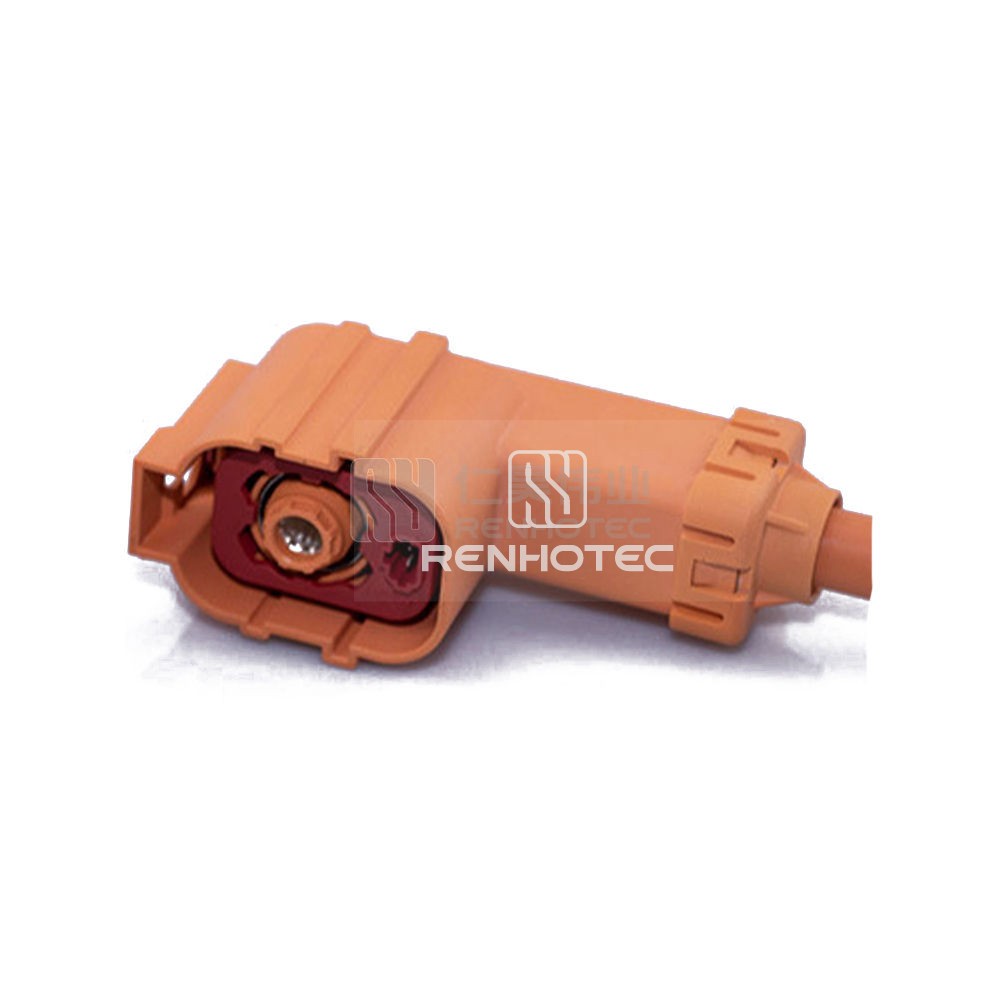

Products > HVIL Series Connector > 1 POS High Power Electric vehicle Cable Plug 150A 25mm2 Shielded Cable A Key Right Angle
ST522000-A-25
1 POS High Power Electric vehicle Cable Plug 150A 25mm2 Shielded Cable A Key Right Angle- Overview
- Technical data
- Certification
- Download
Product certification
Product excerpt
This high power electric vehicle cable plug is designed for 150A current with a 25mm² shielded cable. Featuring a key right angle design, it ensures secure and efficient power transfer for electric vehicles. Perfect for connecting power sources to electric vehicles with ease.
GeneralElectricalMechanicalMaterialEnvironmental
| General | |
|---|---|
| Connector Type | Plug |
| Orientation | Right Angle |
| Number of Positions | 1 |
| Contact Size | 8mm |
| Contact Termination | Crimp |
| Key | A |
| Color | Orange |
| Features | Waterproof |
| Electrical | |
|---|---|
| Rated Voltage | 1500V |
| Rated Current | 150A |
| Shielding | Shielded |
| Mechanical | |
|---|---|
| Mounting Type | Cable Type |
| Wire Gauge or Range | 25mm² |
| Material | |
|---|---|
| Shell Material | PA66+GF |
| Contact Material | Copper Alloy |
| Contact Finish | Silver |
| Environmental | |
|---|---|
| Ingress Protection | IP67 |
| Operating Temperature | -40°C ~ + 125°C |
| Flammability | UL94 V-0 |
Certification
| High Voltage Interlock Connectors CE | Download |
