Products > HVIL Series Connector > 6 POS High Power Electric vehicle Cable Plug 20A 2.5mm2 Shielded Cable A Key Straight
![](https://staging.renhotec.com/wp-content/uploads/2024/03/ST535000-A-2.5_660692180e0e1.jpg)
![](https://staging.renhotec.com/wp-content/uploads/2024/03/ST535000-A-2.5_660692180e0e1.jpg)

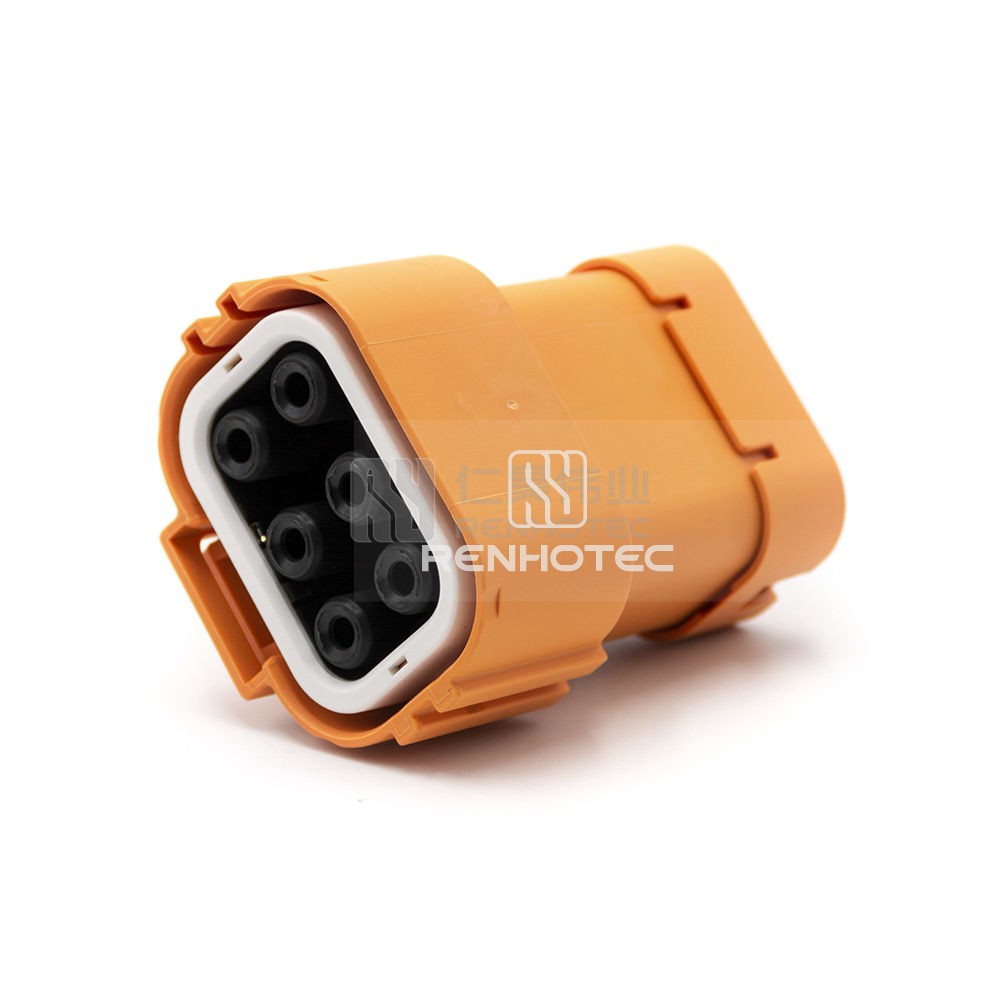

ST535000-A-2.5
6 POS High Power Electric vehicle Cable Plug 20A 2.5mm2 Shielded Cable A Key Straight- Overview
- Technical data
- Certification
- Download
Product certification
Product excerpt
This 6 POS high power electric vehicle cable plug with 20A capacity and 2.5mm² shielded cable is designed with a key straight connection for secure applications. Ideal for electric vehicles, ensuring safe and efficient power transmission.
GeneralElectricalMechanicalMaterialEnvironmental
General | |
---|---|
Connector Type | Plug |
Orientation | Straight |
Number of Positions | 6 |
Contact Termination | Crimp |
Key | A |
Color | Orange |
Features | Waterproof |
Electrical | |
---|---|
Rated Voltage | 800V |
Rated Current | 20A |
Shielding | Shielded |
Mechanical | |
---|---|
Mounting Type | Cable Type |
Wire Gauge or Range | 2.5mm² |
Material | |
---|---|
Shell Material | PA66+GF |
Contact Material | Copper Alloy |
Contact Finish | Tin |
Environmental | |
---|---|
Ingress Protection | IP67 |
Operating Temperature | -40°C ~ + 125°C |
Flammability | UL94 V-0 |
Certification
High Voltage Interlock Connectors CE | Download |
