NI1-1-S080-1AYA-C10

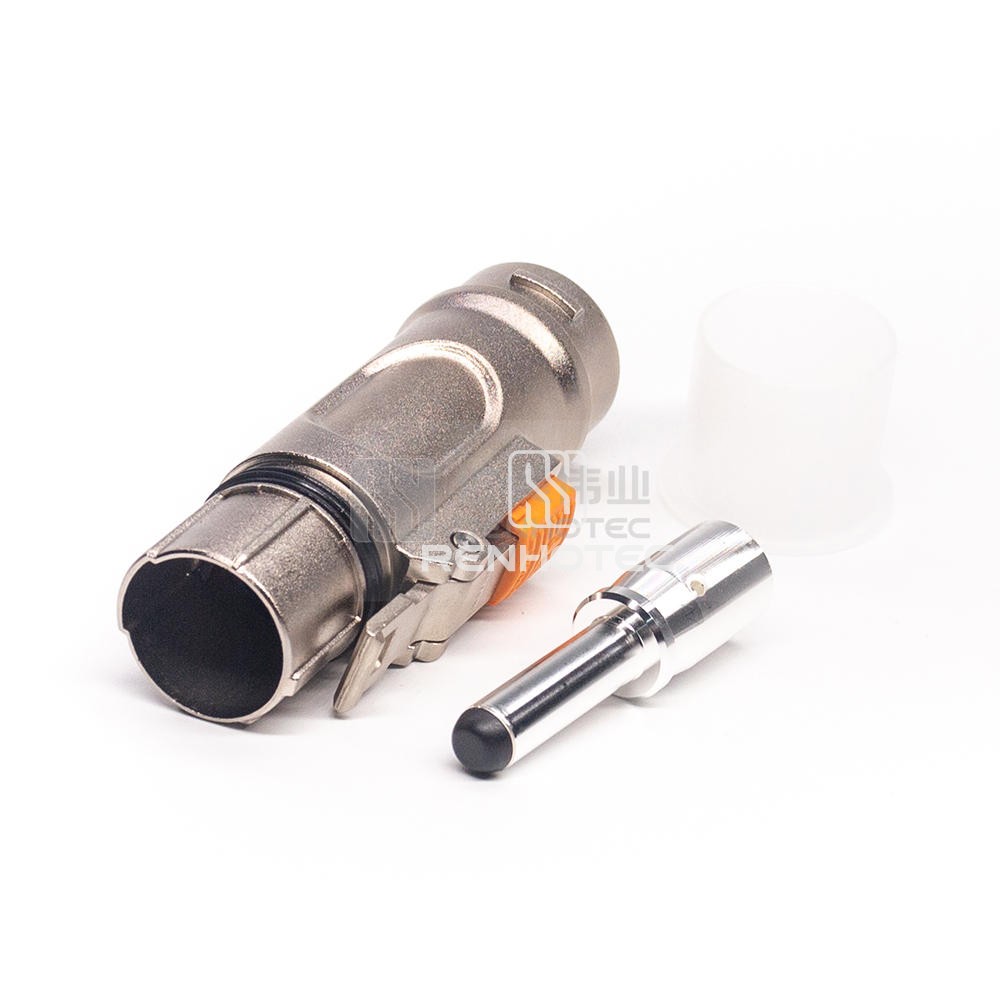

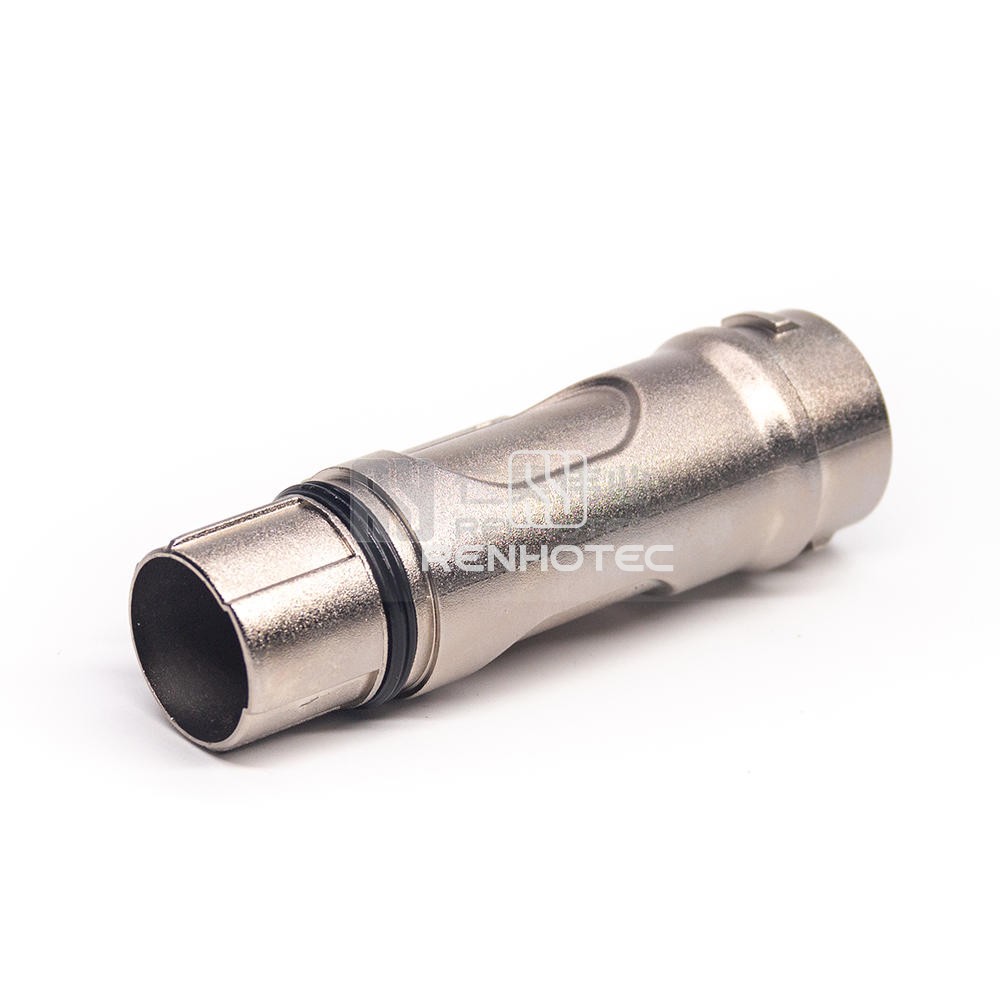

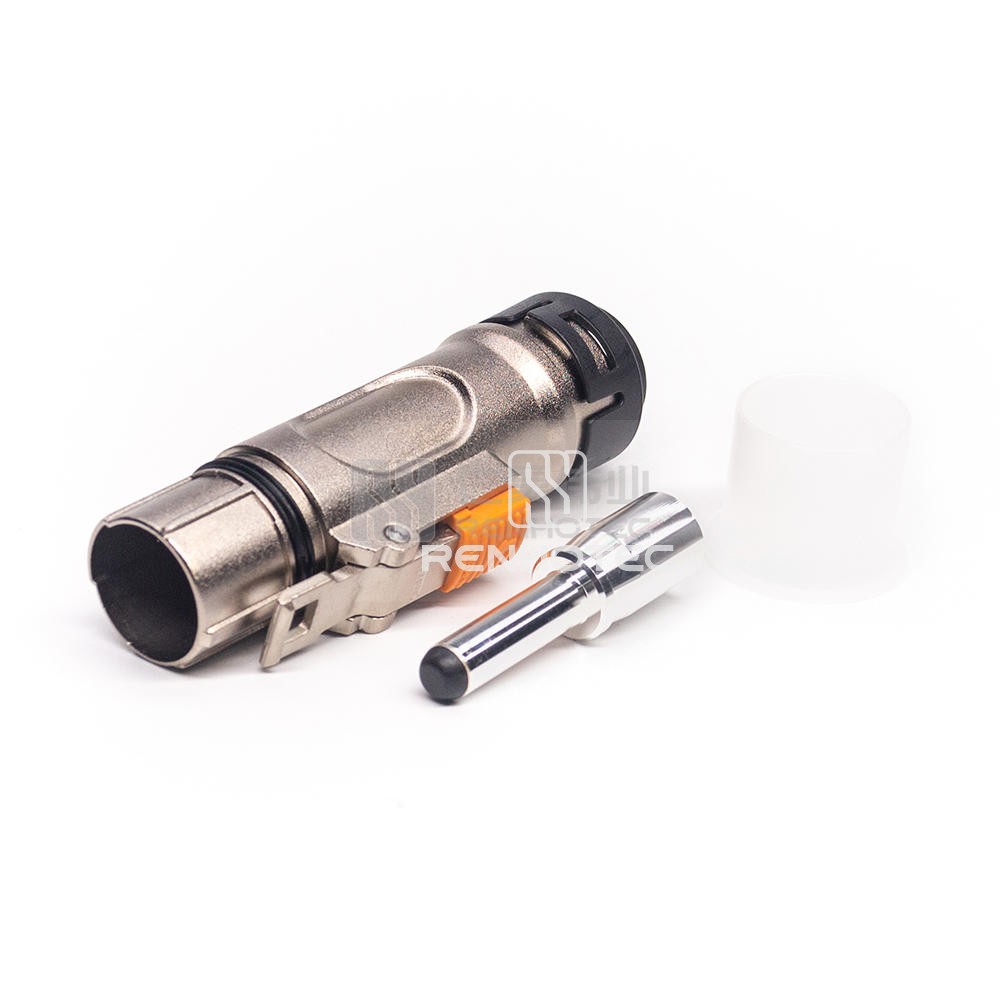

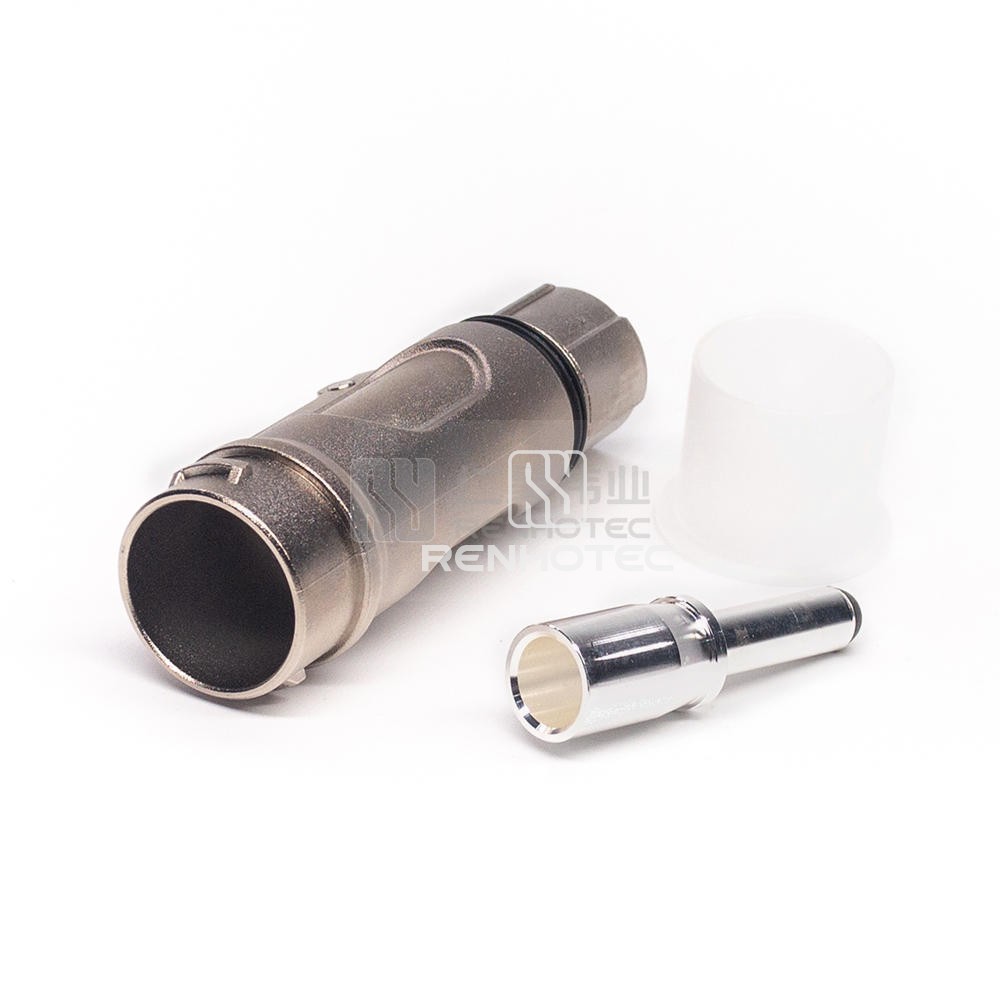

1 POS High Voltage Interlock Connector Metal Plug 200A 50mm2 Shielded Cable A Key Straight
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product certification

×

Product excerpt

This high voltage interlock connector plug features a 200A capacity, shielded cable, and a secure A key design. Ideal for applications requiring reliable connectivity in high voltage environments.
GeneralElectricalMechanicalMaterialEnvironmental
General
Connector TypePlug
OrientationStraight
Number of Positions1

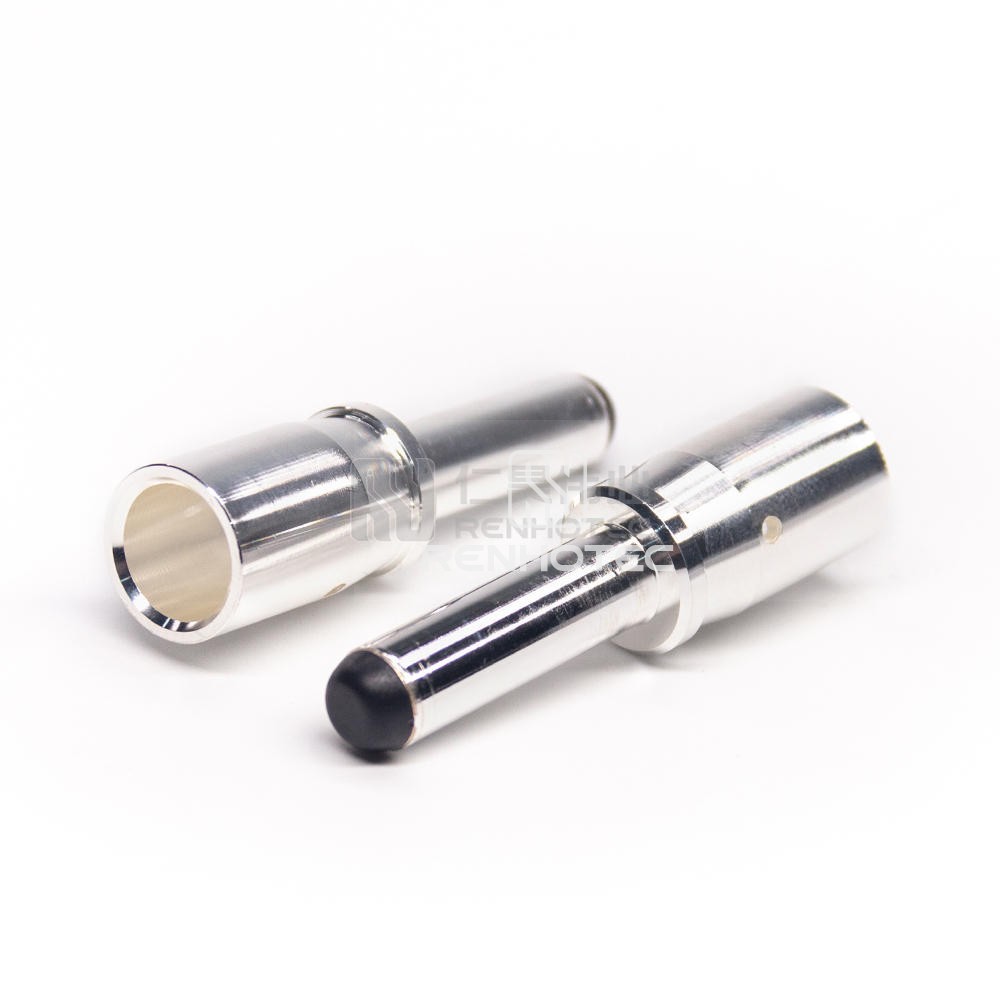

Contact Size8mm
Contact TerminationCrimp
KeyA
ColorSilver
FeaturesIntegrated Internal HVIL
Electrical
Rated Voltage800V
Rated Current200A
ShieldingShielded
Mechanical
Mounting TypeCable Type
Wire Gauge or Range50mm²
Material
Shell MaterialZinc Alloy
Contact MaterialCopper Alloy
Contact FinishNickel
Environmental
Ingress ProtectionIP67
Operating Temperature-40°C ~ + 125°C
FlammabilityUL94 V-0

Certification

High Voltage Interlock Connectors CE Download

Catelog

RENHOTEC EV Product Catalog [EN] Download
RENHOTEC HVIL Connector Catalog [EN] Download
