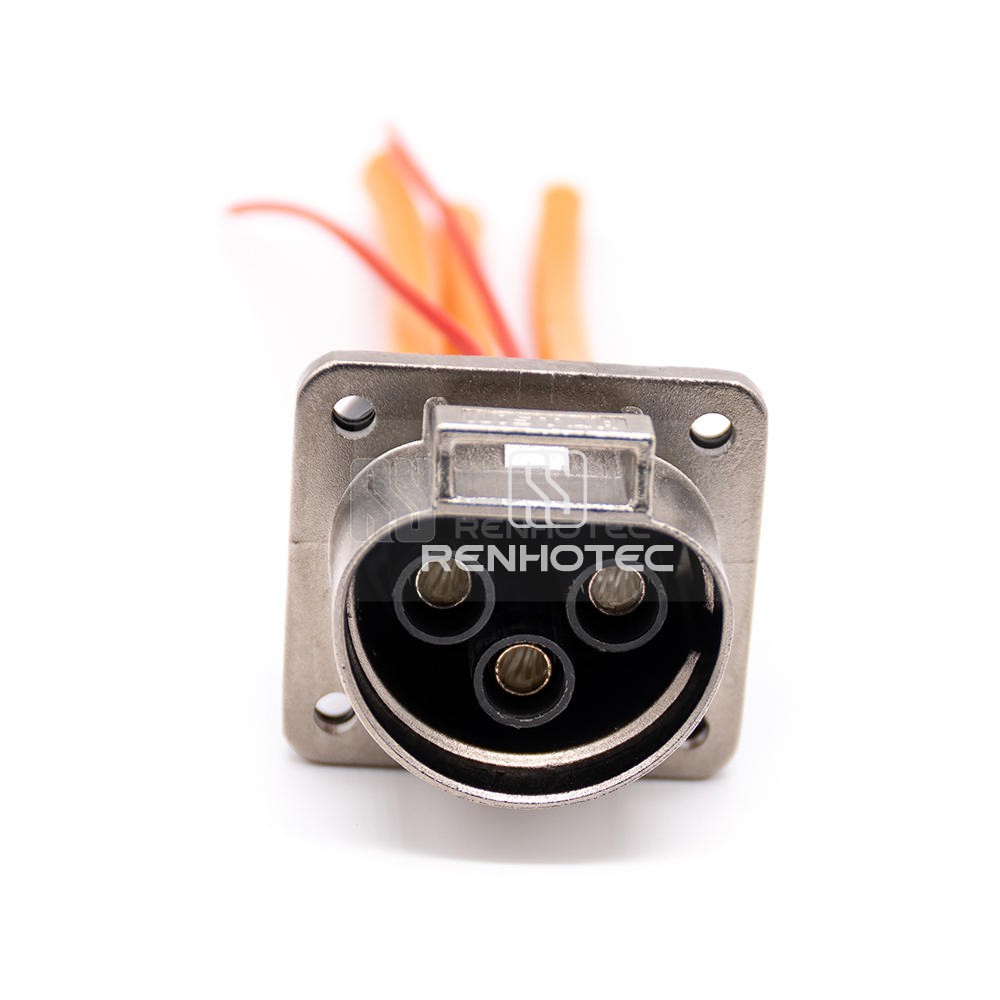

product image

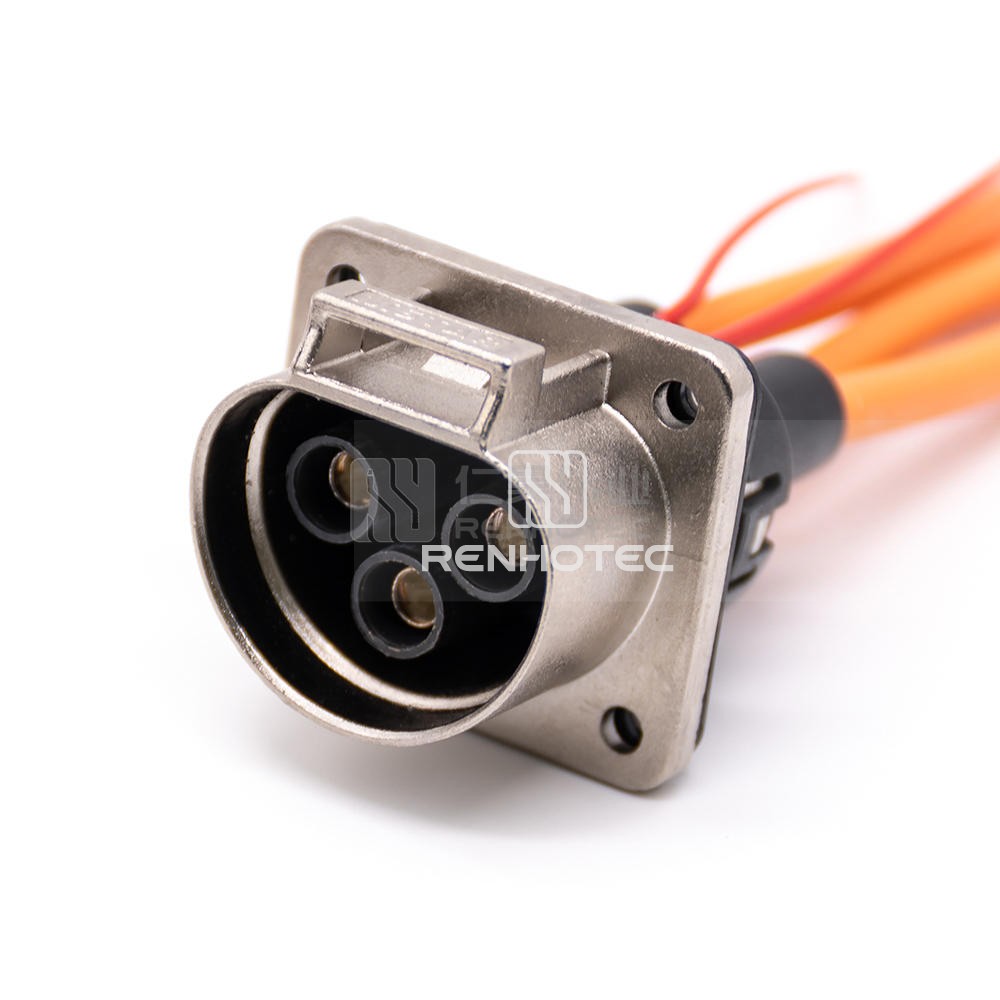

product image

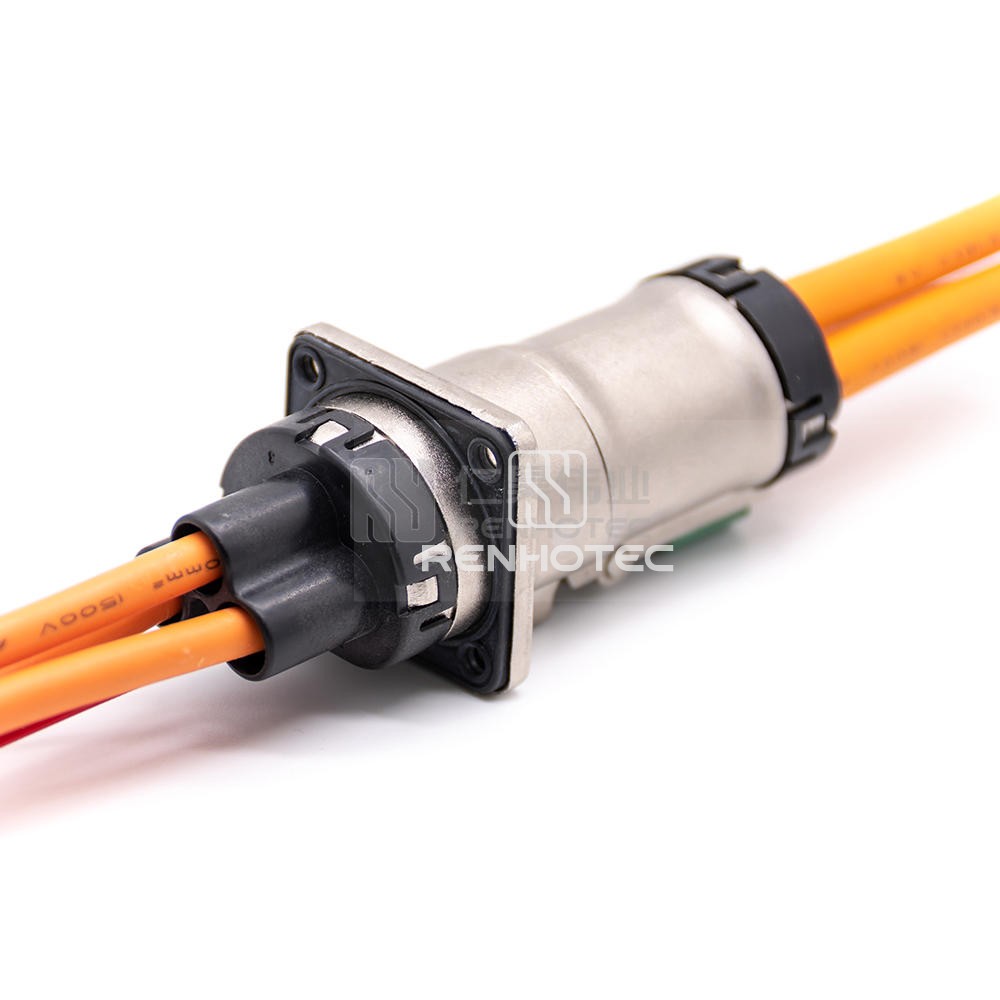

product image

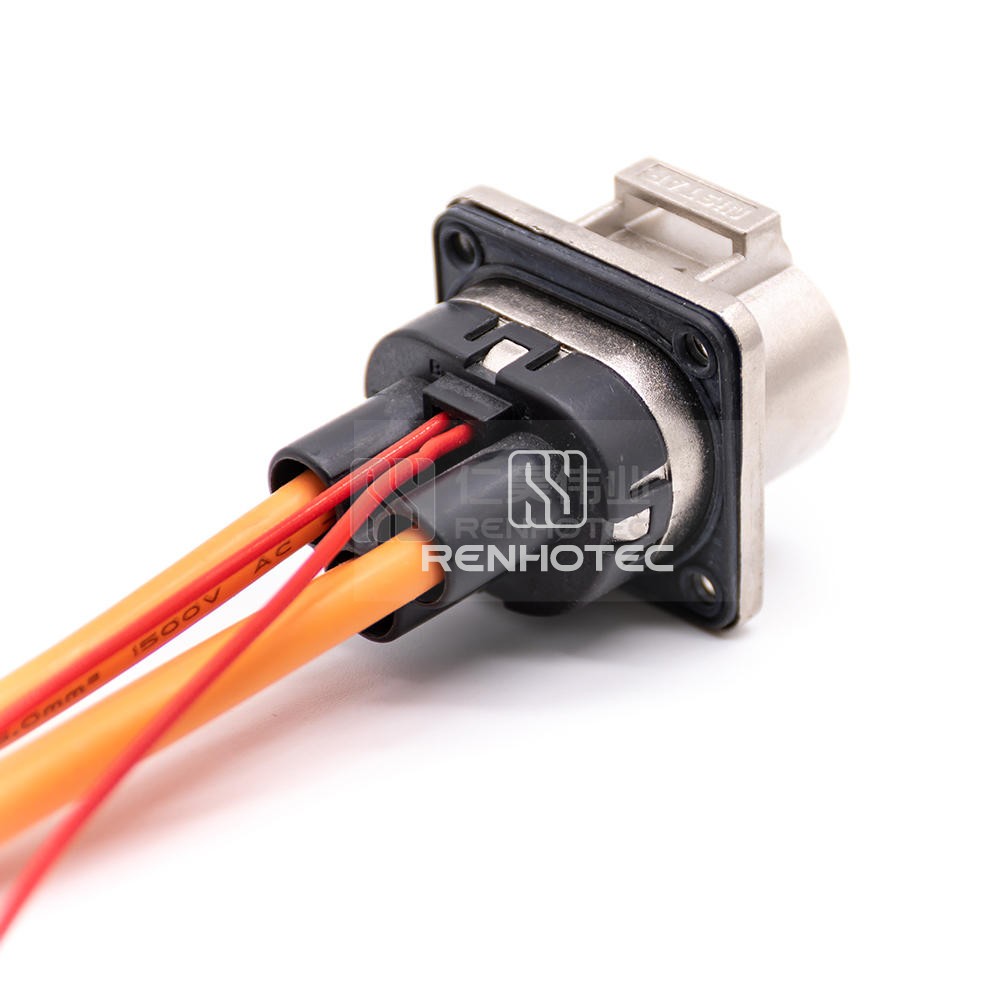

product image

NI1-1-H036-3YYN-C05

3 POS High Power Electric vehicle connector Socket 35A 6mm2 Unsheilded Cable Y Key Box Mount
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product certification

×

Product excerpt

This 3 POS High Power Electric vehicle connector Socket is designed with a 35A capacity and 6mm² cable for efficient power transmission. The Y Key Box Mount provides secure mounting options. Ideal for electric vehicle charging applications.
GeneralElectricalMechanicalMaterialEnvironmental
General
Connector TypeReceptacle
OrientationStraight
Number of Positions3
Contact Size3.6mm
Contact TerminationCrimp
KeyY
ColorSilver
FeaturesIntegrated Internal HVIL
Electrical
Rated Voltage800V
Rated Current35A
ShieldingShielded
Mechanical
Mounting TypePanel Mount
Mounting FeatureFour Flange
Wire Gauge or Range6mm²
Material
Shell MaterialZinc Alloy
Contact MaterialCopper Alloy
Contact FinishNickel
Environmental
Ingress ProtectionIP67
Operating Temperature-40°C ~ + 125°C
FlammabilityUL94 V-0
