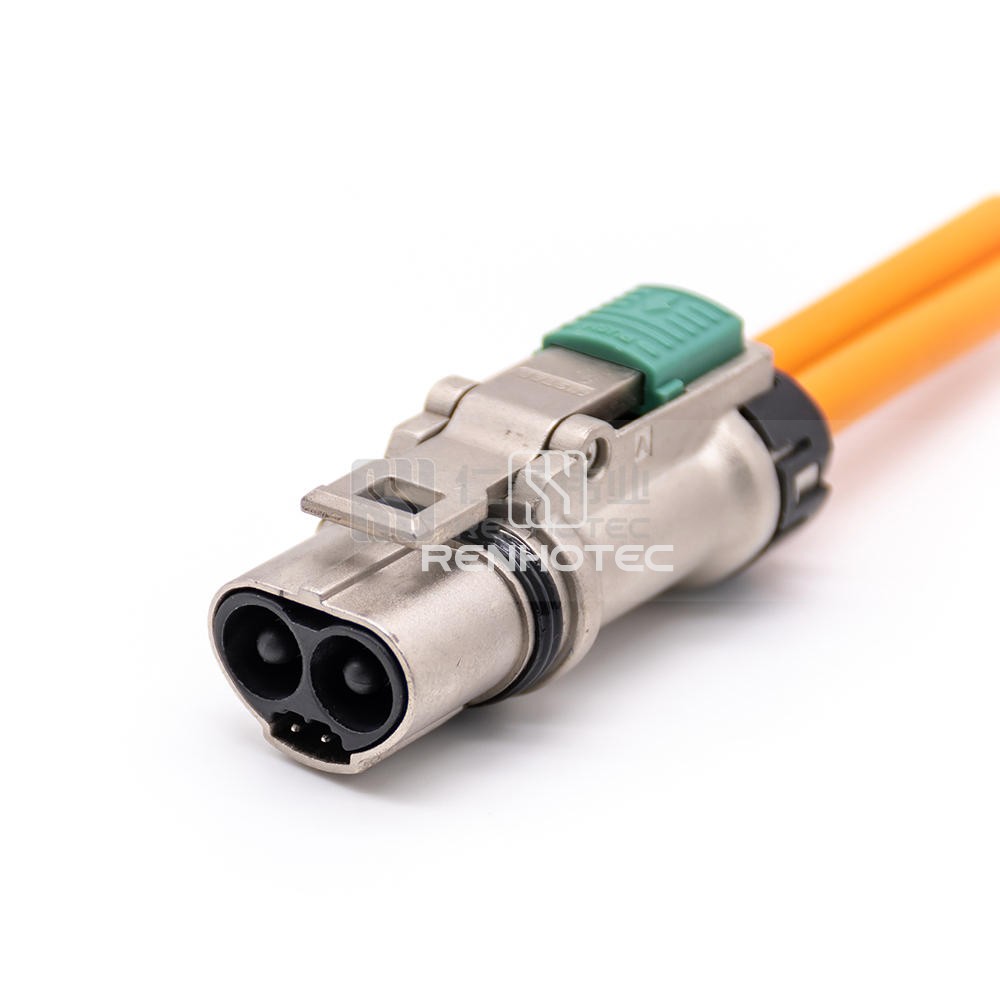

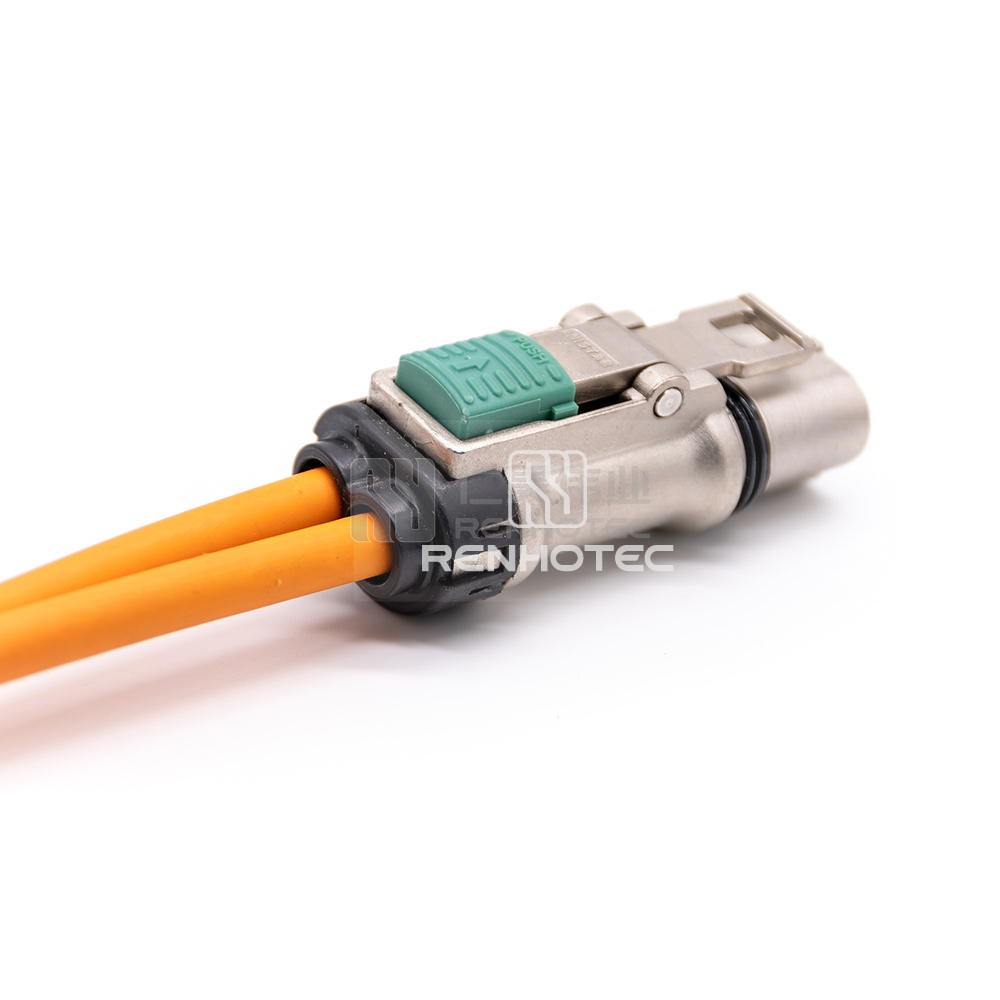

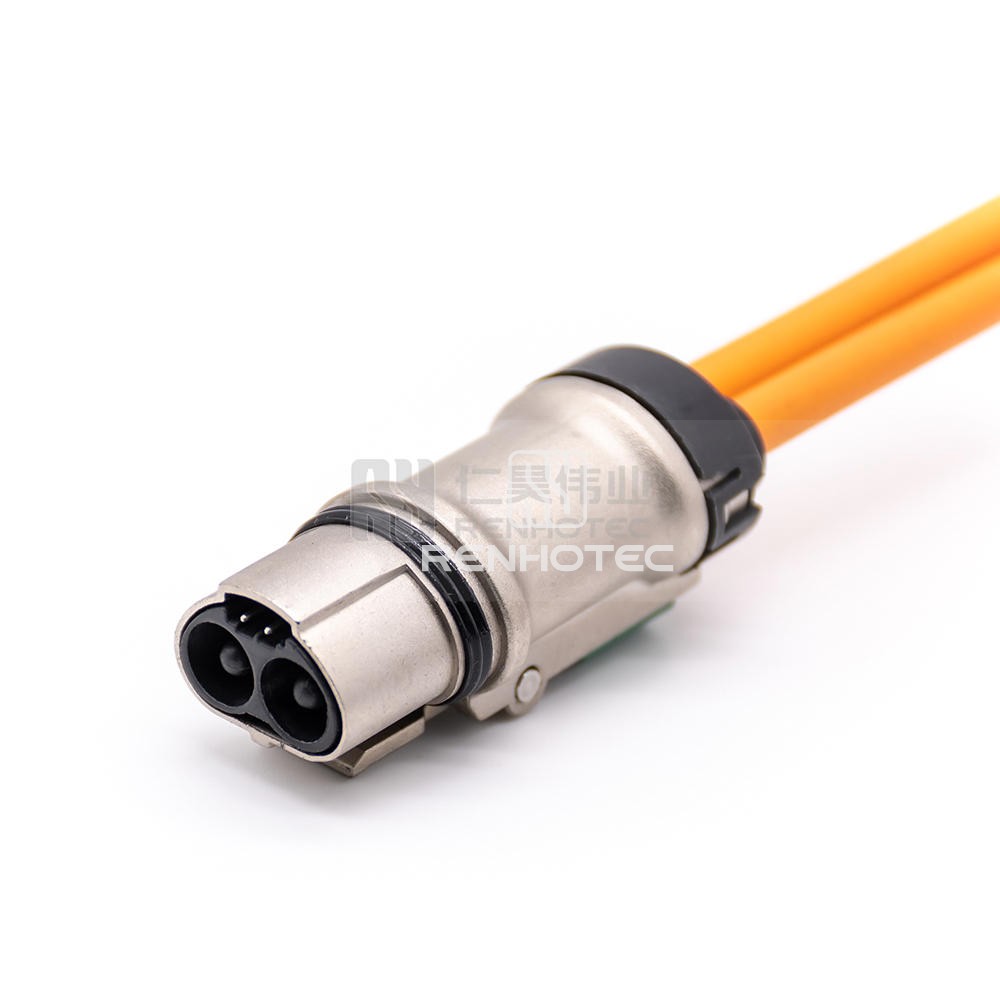

Products > HVIL Series Connector > 2 POS High Power Electric vehicle Cable Plug 16A 2.5mm2 Shielded Cable A Key Straight
NI1-1-S036-2AYN-C03
2 POS High Power Electric vehicle Cable Plug 16A 2.5mm2 Shielded Cable A Key Straight- Overview
- Technical data
- Certification
- Download
GeneralElectricalMechanicalMaterialEnvironmental
| General | |
|---|---|
| Connector Type | Plug |
| Orientation | Straight |
| Number of Positions | 2 |
| Contact Size | 3.6mm |
| Contact Termination | Crimp |
| Key | A |
| Color | Silver |
| Features | Integrated Internal HVIL |
| Electrical | |
|---|---|
| Rated Voltage | 800V |
| Rated Current | 16A |
| Shielding | Shielded |
| Mechanical | |
|---|---|
| Mounting Type | Cable Type |
| Wire Gauge or Range | 2.5mm² |
| Material | |
|---|---|
| Shell Material | Zinc Alloy |
| Contact Material | Copper Alloy |
| Contact Finish | Nickel |
| Environmental | |
|---|---|
| Ingress Protection | IP67 |
| Operating Temperature | -40°C ~ + 125°C |
| Flammability | UL94 V-0 |
Certification
| High Voltage Interlock Connectors CE | Download |
