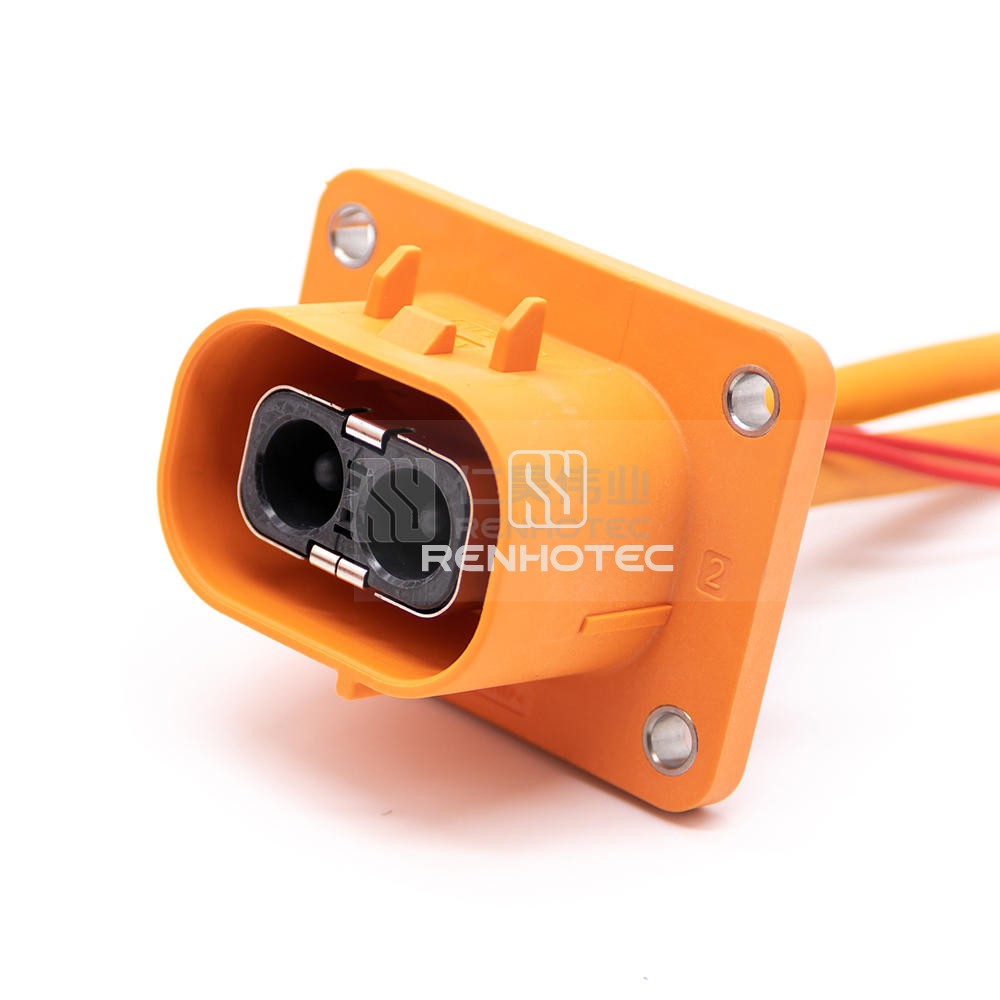

NI2-1-H036-2YYA-C03
2 POS High Power Electric vehicle connector Socket 16A 2.5mm2 Shielded Cable Y Key- Overview
- Technical data
- Certification
- Download
Product certification
Product excerpt
This high-power electric vehicle connector socket is designed for reliable and efficient charging, with a 16A capacity and 2.5mm² shielded cable. The Y key ensures secure connections, making it ideal for electric vehicle charging applications.
GeneralElectricalMechanicalMaterialEnvironmental
General | |
---|---|
Connector Type | Receptacle |
Orientation | Straight |
Number of Positions | 2 |
Contact Size | 3.6mm |
Contact Termination | Crimp |
Key | Y |
Color | Orange |
Features | Integrated Internal HVIL |
Electrical | |
---|---|
Rated Voltage | 800V |
Rated Current | 16A |
Shielding | Shielded |
Mechanical | |
---|---|
Mounting Type | Panel Mount |
Mounting Feature | Four Flange |
Wire Gauge or Range | 2.5mm² |
Material | |
---|---|
Shell Material | PA66+GF |
Contact Material | Copper Alloy |
Contact Finish | Nickel |
Environmental | |
---|---|
Ingress Protection | IP67 |
Operating Temperature | -40°C ~ + 125°C |
Flammability | UL94 V-0 |
Certification
High Voltage Interlock Connectors CE | Download |
