Products > HVIL Series Connector > 2 POS High Power Electric vehicle connector Socket 35A 6mm2 Shielded Cable A Key
![](https://staging.renhotec.com/wp-content/uploads/2024/03/NI2-1-H036-2AYA-C05_66068d1e8ecef.jpg)
![](https://staging.renhotec.com/wp-content/uploads/2024/03/NI2-1-H036-2AYA-C05_66068d1e8ecef.jpg)

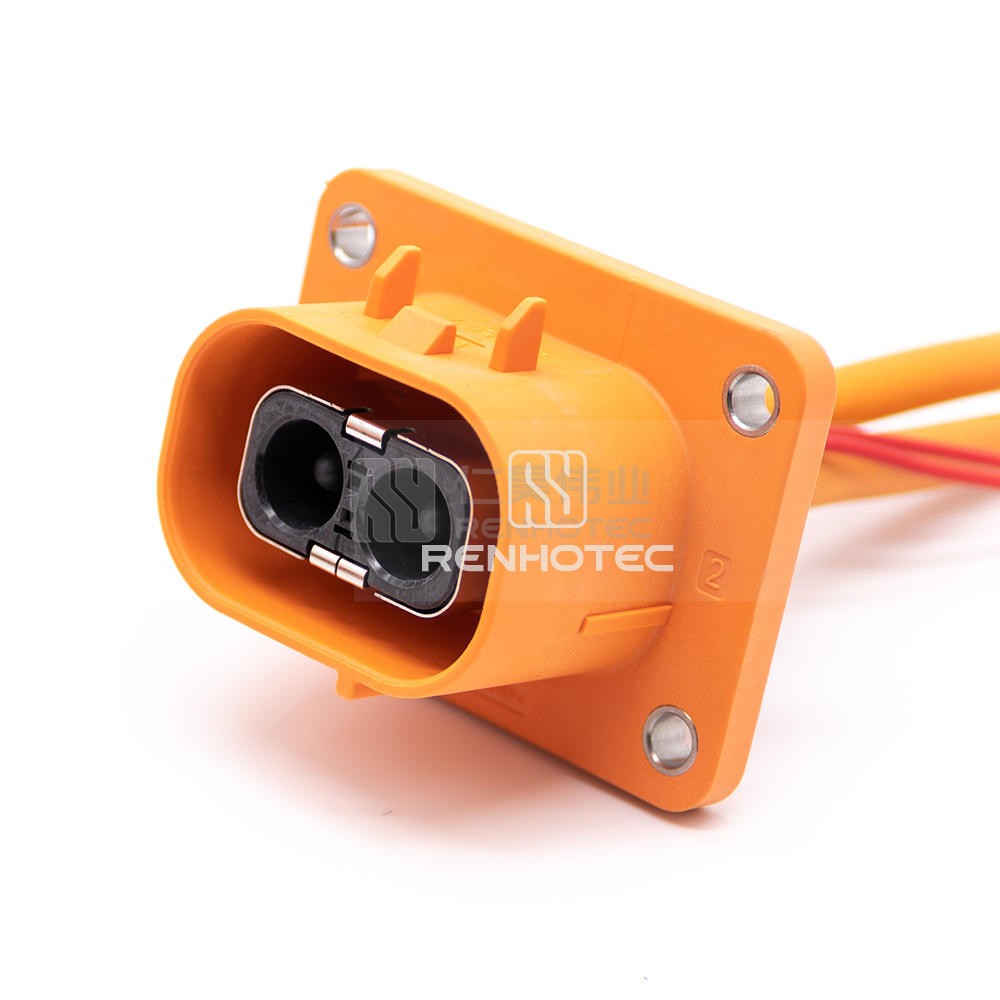

NI2-1-H036-2AYA-C05
2 POS High Power Electric vehicle connector Socket 35A 6mm2 Shielded Cable A Key- Overview
- Technical data
- Certification
- Download
Product certification
Product excerpt
Upgrade your electric vehicle charging with this high-power connector socket. With a 35A capacity and shielded cable, charging is fast and efficient. The A key design ensures a secure connection. Perfect for electric vehicles and compatible with various models.
GeneralElectricalMechanicalMaterialEnvironmental
General | |
---|---|
Connector Type | Receptacle |
Orientation | Straight |
Number of Positions | 2 |
Contact Size | 3.6mm |
Contact Termination | Crimp |
Key | A |
Color | Orange |
Features | Integrated Internal HVIL |
Electrical | |
---|---|
Rated Voltage | 800V |
Rated Current | 35A |
Shielding | Shielded |
Mechanical | |
---|---|
Mounting Type | Panel Mount |
Mounting Feature | Four Flange |
Wire Gauge or Range | 6mm² |
Material | |
---|---|
Shell Material | PA66+GF |
Contact Material | Copper Alloy |
Contact Finish | Nickel |
Environmental | |
---|---|
Ingress Protection | IP67 |
Operating Temperature | -40°C ~ + 125°C |
Flammability | UL94 V-0 |
Certification
High Voltage Interlock Connectors CE | Download |
