NI2-1-S060-2AYA-C07

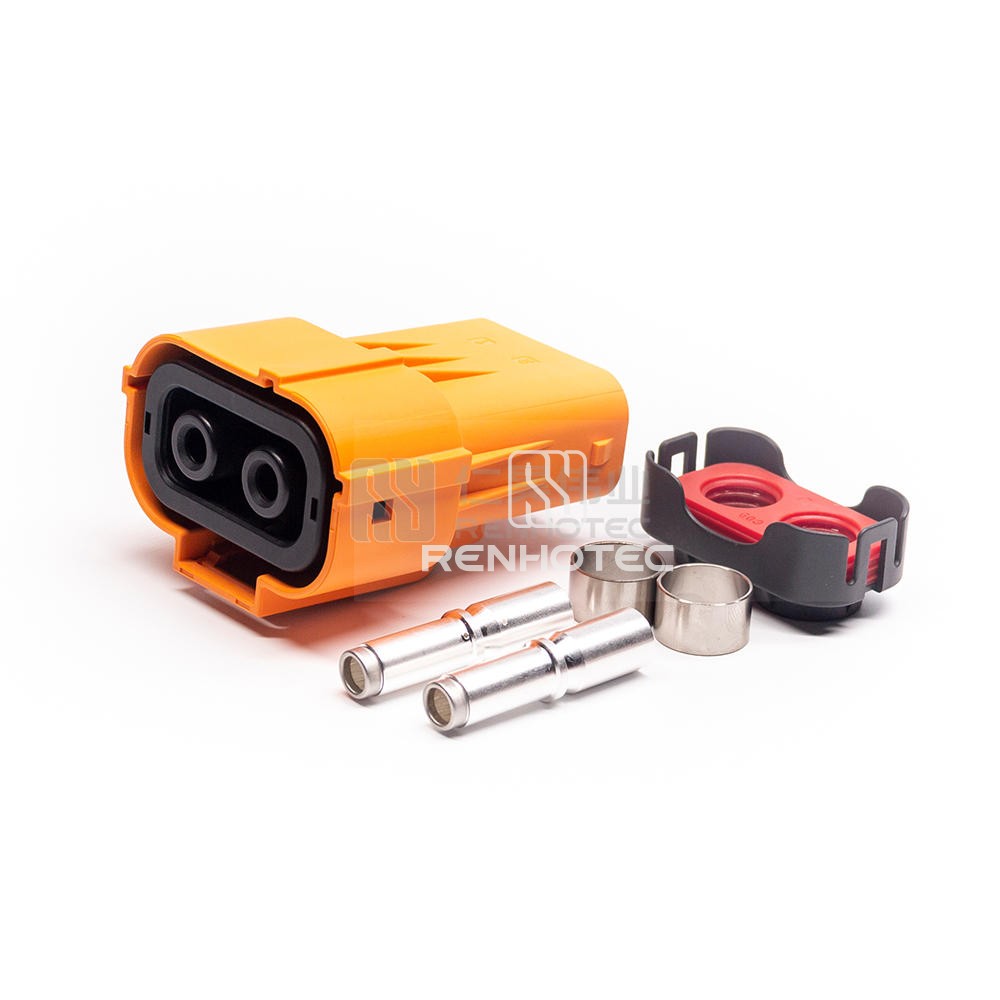

2 POS High Voltage Interlock Connector Plastic Plug 80A 16mm2 Shielded Cable A Key Straight
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product certification

×

Product excerpt

This 2 POS High Voltage Interlock Connector with a plastic plug is designed for use with 80A 16mm² shielded cables. Featuring a straight design and A Key configuration, this connector ensures a secure and reliable connection for high voltage applications.
GeneralElectricalMechanicalMaterialEnvironmental
General
Connector TypePlug
OrientationStraight
Number of Positions2
Contact Size6mm
Contact TerminationCrimp
KeyA
ColorOrange
FeaturesIntegrated Internal HVIL
Electrical
Rated Voltage800V
Rated Current80A
ShieldingShielded
Mechanical
Mounting TypeCable Type
Wire Gauge or Range16mm²
Material
Shell MaterialPA66+GF
Contact MaterialCopper Alloy
Contact FinishNickel
Environmental
Ingress ProtectionIP67
Operating Temperature-40°C ~ + 125°C
FlammabilityUL94 V-0
