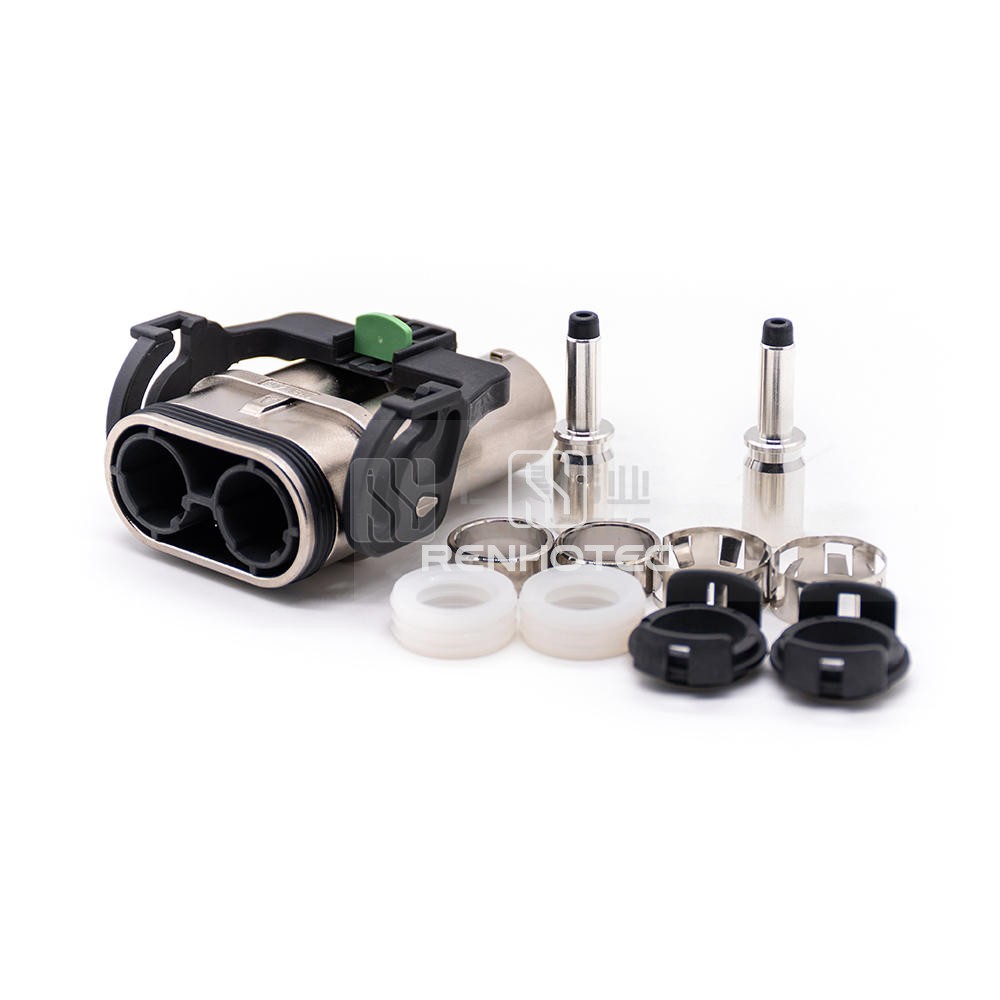

Products > HVIL Series Connector > 2 POS High Power Electric vehicle Cable Plug 80A 16mm2 Shielded Cable Y Key Straight
NI1-1-S060-2YYN-C07
2 POS High Power Electric vehicle Cable Plug 80A 16mm2 Shielded Cable Y Key Straight- Overview
- Technical data
- Certification
- Download
Product certification
Product excerpt
Efficiently transfer power with this high-quality 2 POS Electric vehicle Cable Plug. With a high power rating of 80A, this plug features a 16mm² shielded cable to ensure safety and reliability. The Y key design allows for easy handling and secure connections. Ideal for electric vehicles, this cable plug is a must-have for charging stations and power supply units.
GeneralElectricalMechanicalMaterialEnvironmental
| General | |
|---|---|
| Connector Type | Plug |
| Orientation | Straight |
| Number of Positions | 2 |
| Contact Size | 6mm |
| Contact Termination | Crimp |
| Key | Y |
| Color | Silver |
| Features | Integrated Internal HVIL |
| Electrical | |
|---|---|
| Rated Voltage | 800V |
| Rated Current | 80A |
| Shielding | Shielded |
| Mechanical | |
|---|---|
| Mounting Type | Cable Type |
| Wire Gauge or Range | 16mm² |
| Material | |
|---|---|
| Shell Material | Zinc Alloy |
| Contact Material | Copper Alloy |
| Contact Finish | Nickel |
| Environmental | |
|---|---|
| Ingress Protection | IP67 |
| Operating Temperature | -40°C ~ + 125°C |
| Flammability | UL94 V-0 |
Certification
| High Voltage Interlock Connectors CE | Download |
