Products > HVIL Series Connector > 2 POS High Power Electric vehicle Cable Plug 200A 50mm2 Shielded Cable Y Key Straight
![](https://staging.renhotec.com/wp-content/uploads/2024/03/NI2-1-S080-2YYA-C10_66068f9a338cb.jpg)
![](https://staging.renhotec.com/wp-content/uploads/2024/03/NI2-1-S080-2YYA-C10_66068f9a338cb.jpg)
NI2-1-S080-2YYA-C10

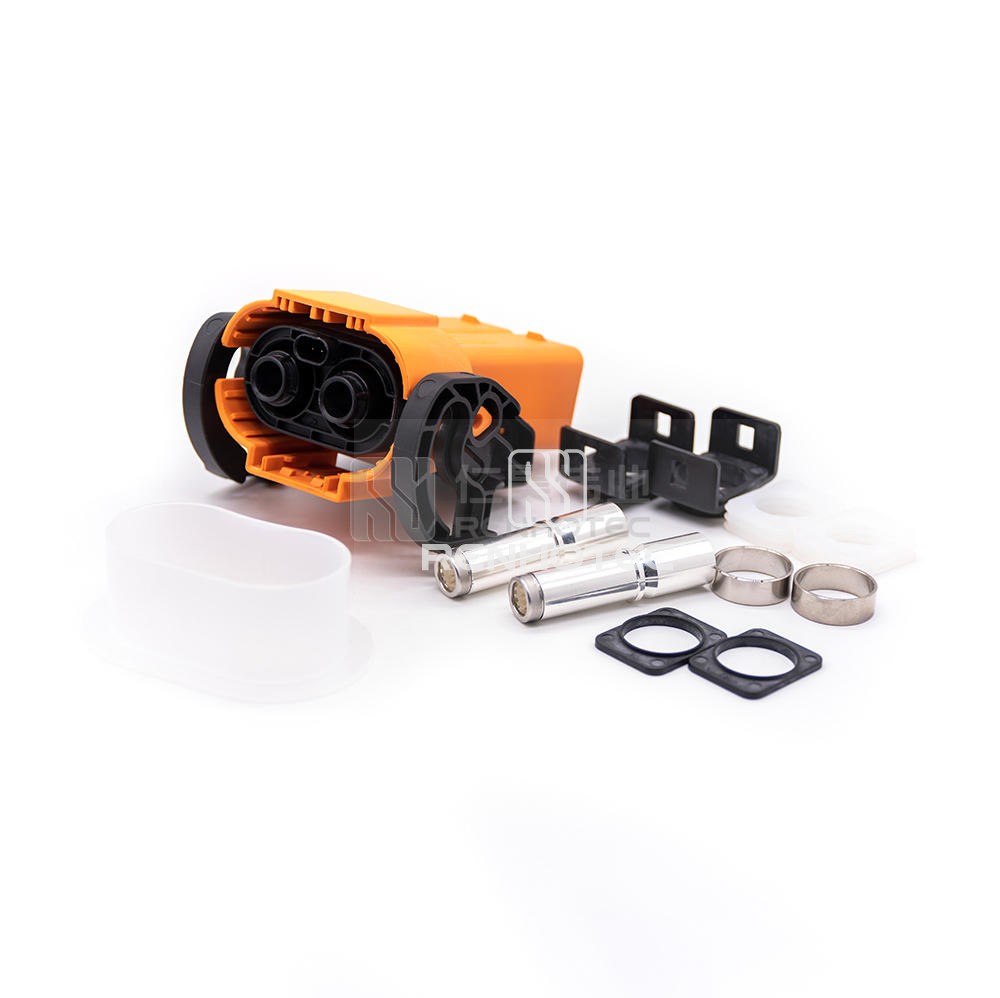

2 POS High Power Electric vehicle Cable Plug 200A 50mm2 Shielded Cable Y Key Straight- Overview
- Technical data
- Certification
- Download
Product certification
Product excerpt
This high power electric vehicle cable plug features 2 positions, 200A capacity, a 50mm² shielded cable, and a Y key straight design. Ideal for securely and efficiently charging electric vehicles, this plug offers a reliable solution for quick and safe charging. Suitable for various applications.
GeneralElectricalMechanicalMaterialEnvironmental
General | |
---|---|
Connector Type | Plug |
Orientation | Straight |
Number of Positions | 2 |
Contact Size | 8mm |
Contact Termination | Crimp |
Key | Y |
Color | Orange |
Features | Integrated Internal HVIL |
Electrical | |
---|---|
Rated Voltage | 800V |
Rated Current | 200A |
Shielding | Shielded |
Mechanical | |
---|---|
Mounting Type | Cable Type |
Wire Gauge or Range | 50mm² |
Material | |
---|---|
Shell Material | PA66+GF |
Contact Material | Copper Alloy |
Contact Finish | Nickel |
Environmental | |
---|---|
Ingress Protection | IP67 |
Operating Temperature | -40°C ~ + 125°C |
Flammability | UL94 V-0 |
Certification
High Voltage Interlock Connectors CE | Download |
