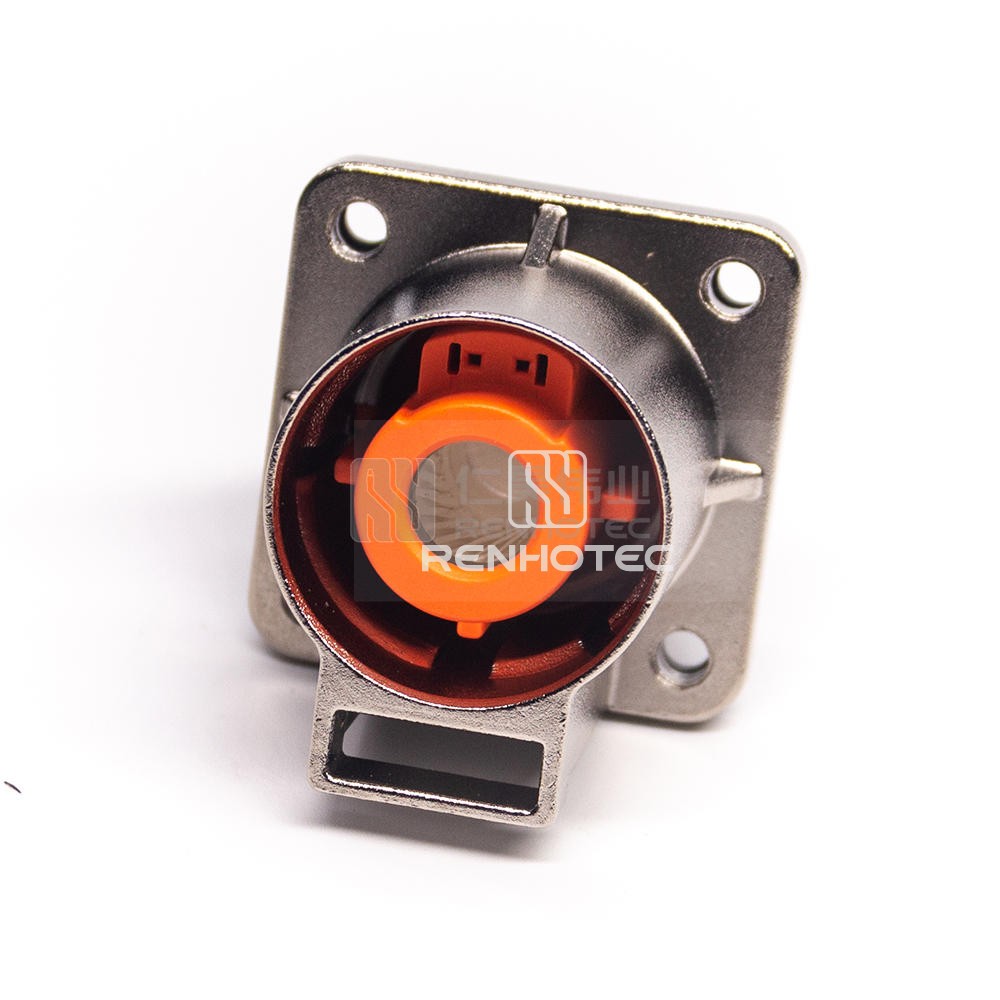

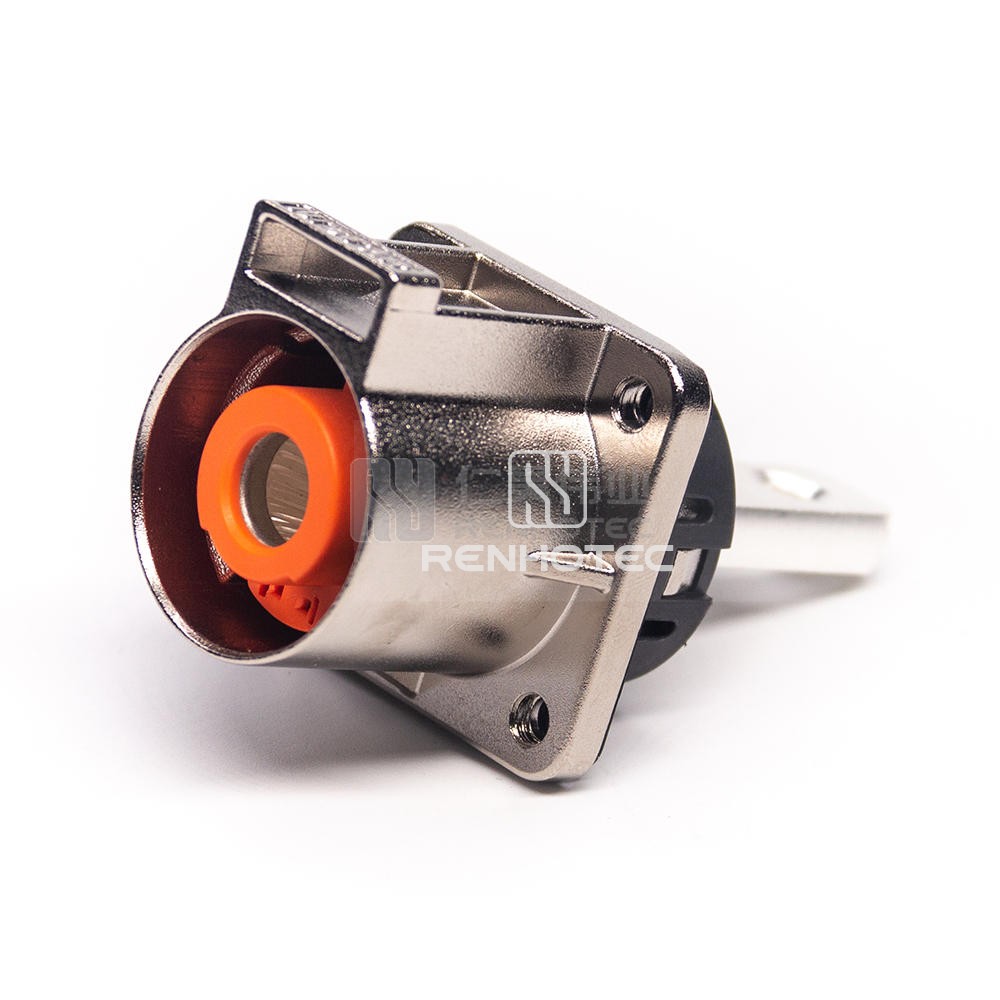

NI1-1-H080-1AYA-T04
1 POS High Voltage Interlock Connector Metal Receptacle 200A Busbar φ8.5 Through Hole A Key Box Mount
Get a Quote
- Overview
- Technical data
- Certification
- Download
GeneralElectricalMechanicalMaterialEnvironmental
General | |
---|---|
Connector Type | Receptacle |
Orientation | Straight |
Number of Positions | 1 |
Contact Size | 8mm |
Contact Termination | Busbar |
Key | A |
Color | Silver |
Features | Integrated Internal HVIL |
Electrical | |
---|---|
Rated Voltage | 800V |
Rated Current | 200A |
Shielding | Shielded |
Mechanical | |
---|---|
Mounting Type | Panel Mount |
Mounting Feature | Four Flange |
Wire Gauge or Range | φ8.5Through Hole |
Material | |
---|---|
Shell Material | Zinc Alloy |
Contact Material | Copper Alloy |
Contact Finish | Nickel |
Environmental | |
---|---|
Ingress Protection | IP67 |
Operating Temperature | -40°C ~ + 125°C |
Flammability | UL94 V-0 |
Certification
High Voltage Interlock Connectors CE | Download |
