Products > HVIL Series Connector > 2 POS High Power Electric vehicle Cable Plug 150A 35mm2 Shielded Cable A Key Right Angle
NI2-1-B080-2AYA-C09
2 POS High Power Electric vehicle Cable Plug 150A 35mm2 Shielded Cable A Key Right Angle- Overview
- Technical data
- Certification
- Download
Product certification
Product excerpt

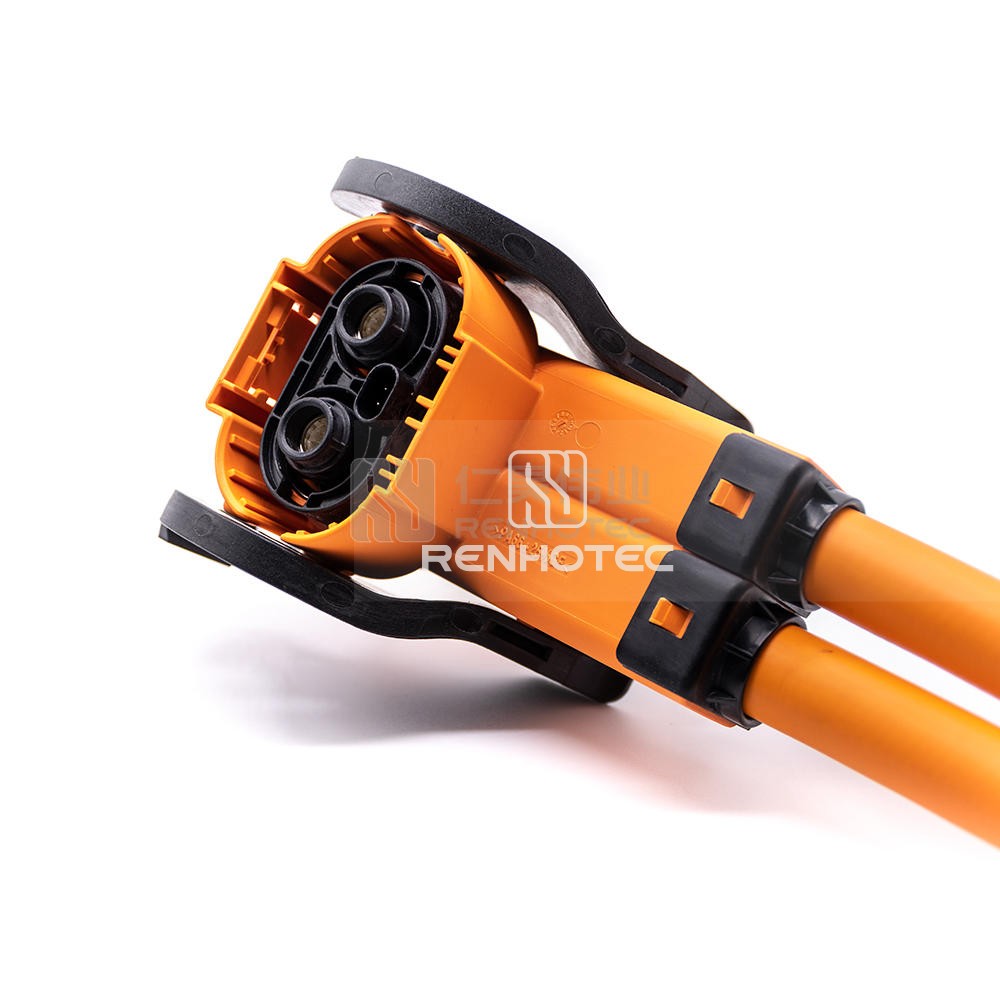

The 2 POS High Power Electric vehicle Cable Plug is designed for high power applications, featuring a 150A capacity and 35mm² shielded cable. With a secure A Key Right Angle, this plug ensures a reliable connection for electric vehicles, making it a vital component for efficient power transfer.
GeneralElectricalMechanicalMaterialEnvironmental
| General | |
|---|---|
| Connector Type | Plug |
| Orientation | Right Angle |
| Number of Positions | 2 |
| Contact Size | 8mm |
| Contact Termination | Crimp |
| Key | A |
| Color | Orange |
| Electrical | |
|---|---|
| Rated Voltage | 800V |
| Rated Current | 150A |
| Shielding | Shielded |
| Mechanical | |
|---|---|
| Mounting Type | Cable Type |
| Wire Gauge or Range | 35mm² |
| Material | |
|---|---|
| Shell Material | PA66+GF |
| Contact Material | Copper Alloy |
| Contact Finish | Nickel |
| Environmental | |
|---|---|
| Ingress Protection | IP67 |
| Operating Temperature | -40°C ~ + 125°C |
| Flammability | UL94 V-0 |
Certification
| High Voltage Interlock Connectors CE | Download |
