Products > HVIL Series Connector > 2 POS High Power Electric vehicle connector Socket 200A Busbar φ6.5 Through Hole Y Key Box Mount
NI2-1-H080-2YYA-T03

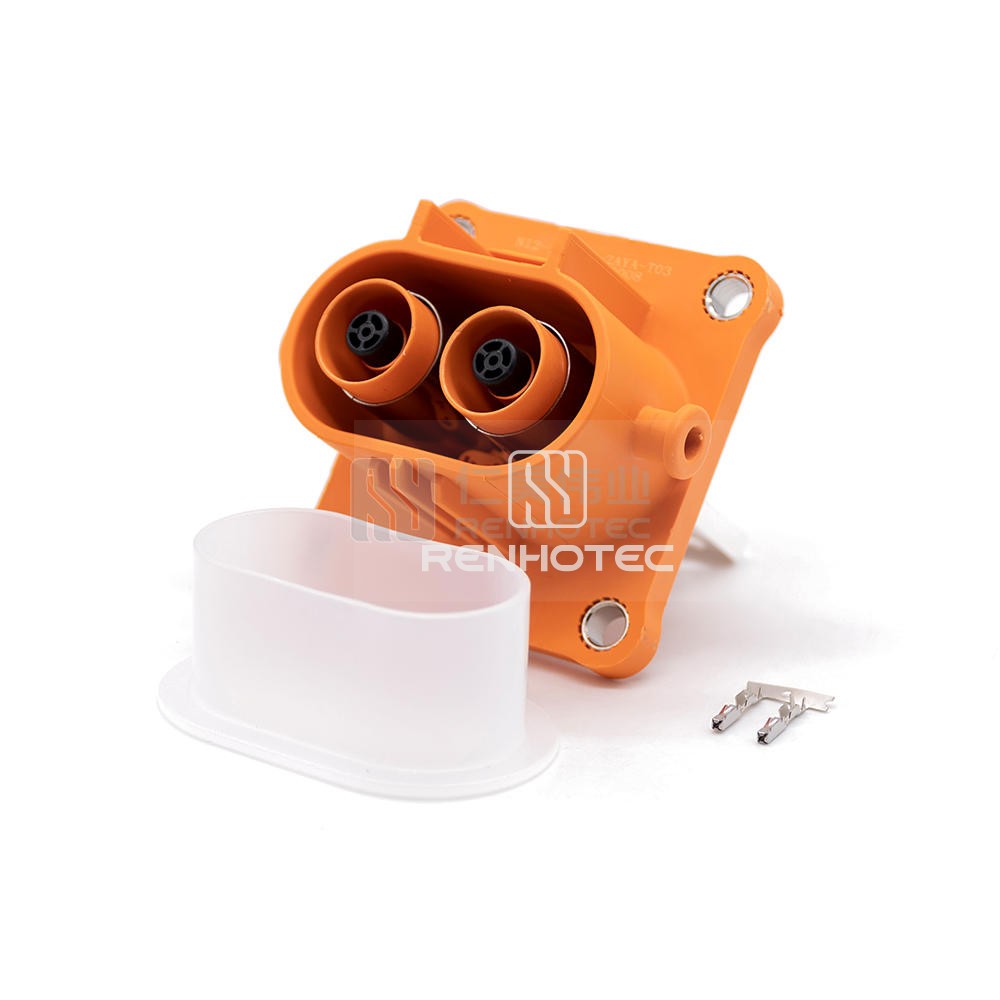

2 POS High Power Electric vehicle connector Socket 200A Busbar φ6.5 Through Hole Y Key Box Mount- Overview
- Technical data
- Certification
- Download
Product certification
Product excerpt
Explore our 2 POS High Power Electric vehicle connector Socket for a secure and efficient 200A connection. Designed with a Busbar φ6.5 Through Hole and Y Key Box Mount for ease of installation. Ideal for electric vehicle applications, ensuring reliable power delivery.
GeneralMaterialMechanicalEnvironmentalElectrical
General | |
---|---|
Connector Type | Receptacle |
Orientation | Straight |
Number of Positions | 2 |
Contact Size | 8mm |
Contact Termination | Busbar |
Key | Y |
Color | Orange |
Material | |
---|---|
Shell Material | PA66+GF |
Contact Material | Copper Alloy |
Contact Finish | Nickel |
Mechanical | |
---|---|
Mounting Type | Panel Mount |
Mounting Feature | Four Flange |
Wire Gauge or Range | φ6.5Through Hole |
Environmental | |
---|---|
Ingress Protection | IP67 |
Operating Temperature | -40°C ~ + 125°C |
Flammability | UL94 V-0 |
Electrical | |
---|---|
Rated Voltage | 800V |
Rated Current | 200A |
Shielding | Shielded |
Certification
High Voltage Interlock Connectors CE | Download |
