Products > HVIL Series Connector > 2 POS Plastic High Power Electric vehicle Cable Plug 125A 25mm2 Shielded Cable A Key Straight
NI2-1-S080-2AYA-C08
2 POS Plastic High Power Electric vehicle Cable Plug 125A 25mm2 Shielded Cable A Key Straight- Overview
- Technical data
- Certification
- Download
Product certification
Product excerpt

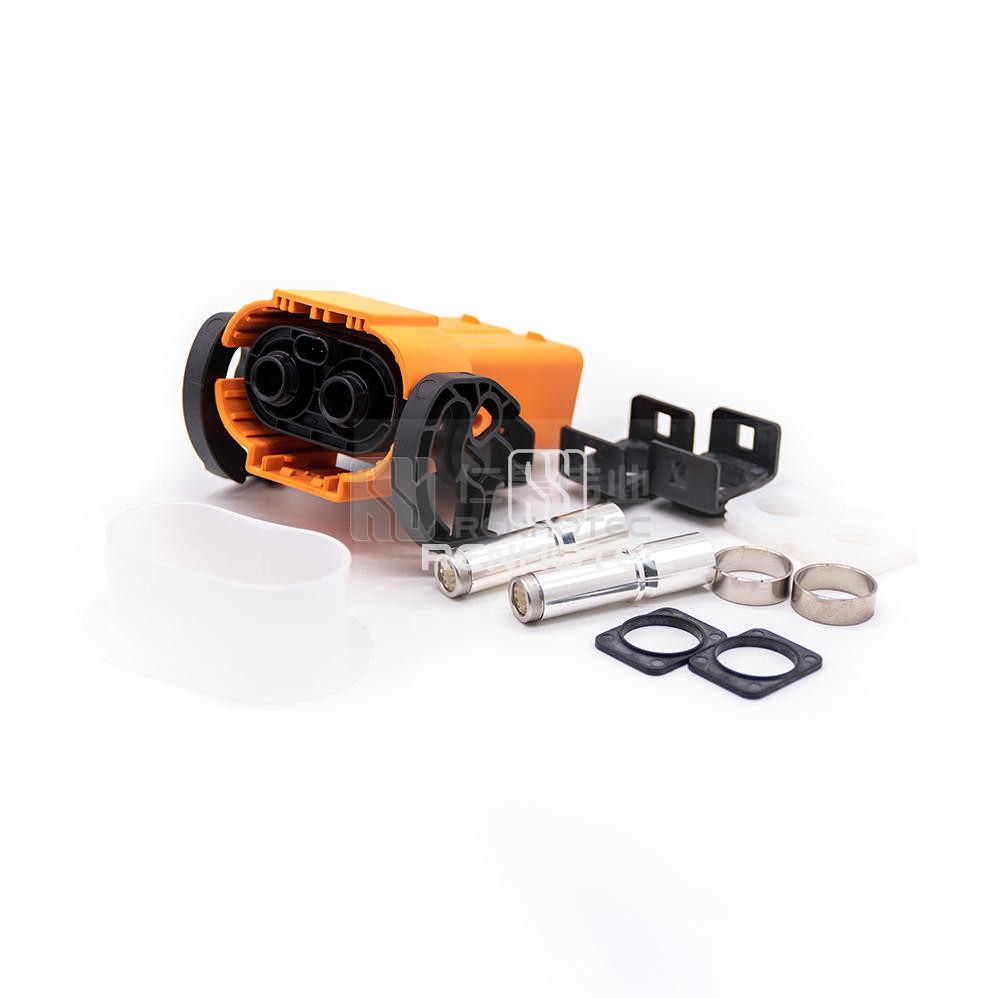

The 2 POS High Power Electric vehicle Cable Plug is designed for high power applications, featuring a 125A capacity and 25mm² shielded cable. With a secure A Key Straight, this plug ensures a reliable connection for electric vehicles, making it a vital component for efficient power transfer.
GeneralMaterialMechanicalEnvironmentalElectrical
General | |
---|---|
Connector Type | Plug |
Orientation | Straight |
Number of Positions | 2 |
Contact Size | 8mm |
Contact Termination | Crimp |
Key | A |
Color | Orange |
Features | Integrated Internal HVIL |
Material | |
---|---|
Shell Material | PA66+GF |
Contact Material | Copper Alloy |
Contact Finish | Nickel |
Mechanical | |
---|---|
Mounting Type | Cable Type |
Wire Gauge or Range | 25mm² |
Environmental | |
---|---|
Ingress Protection | IP67 |
Operating Temperature | -40°C ~ + 125°C |
Flammability | UL94 V-0 |
Electrical | |
---|---|
Rated Voltage | 800V |
Rated Current | 125A |
Shielding | Shielded |
Certification
High Voltage Interlock Connectors CE | Download |
