Products > HVIL Series Connector > 2 POS High Power Electric vehicle connector Socket 63A 10mm2 Shielded Cable
A Key
![](https://staging.renhotec.com/wp-content/uploads/2024/03/NI2-1-H036-2AYA-C06_66068d2257fdd.jpg)
![](https://staging.renhotec.com/wp-content/uploads/2024/03/NI2-1-H036-2AYA-C06_66068d2257fdd.jpg)

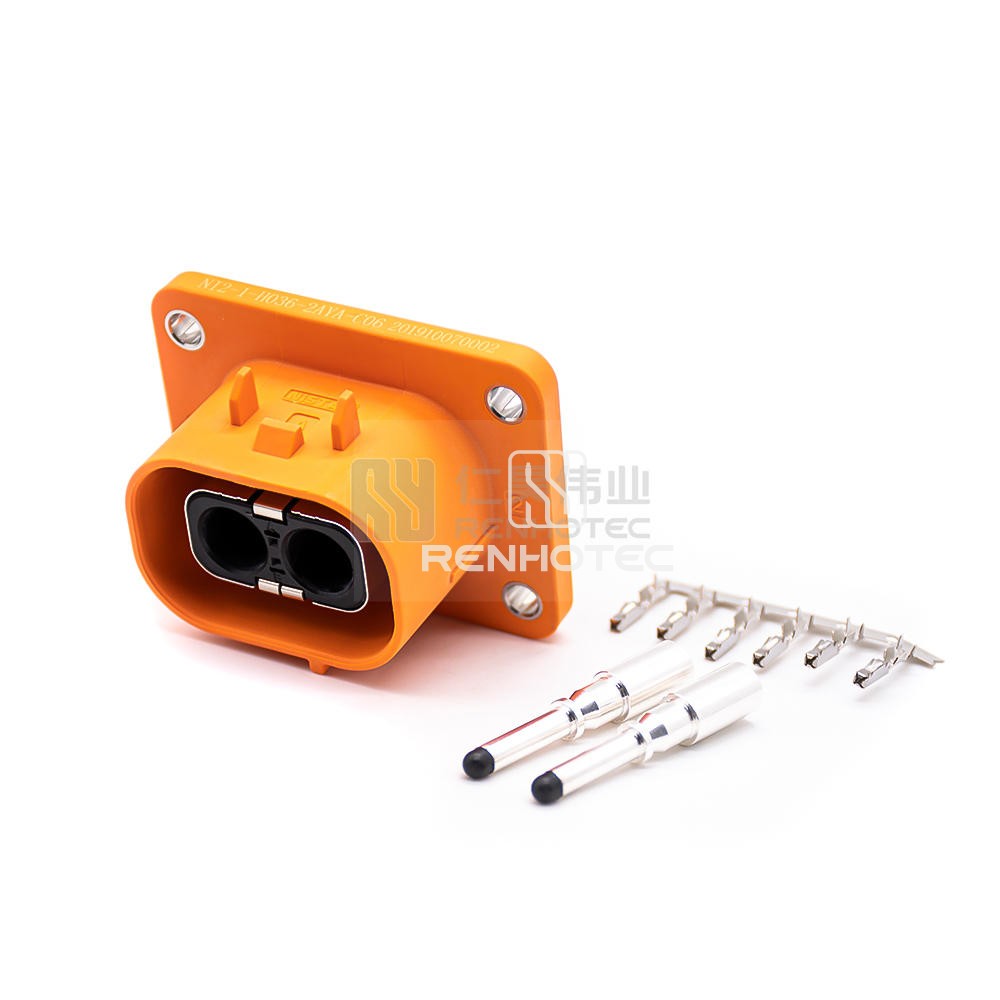

NI2-1-H036-2AYA-C06
2 POS High Power Electric vehicle connector Socket 63A 10mm2 Shielded Cable A Key- Overview
- Technical data
- Certification
- Download
Product certification
Product excerpt
This high power electric vehicle connector socket is designed for 2 POS, allowing for a secure and efficient connection. With a 63A capacity and 10mm² shielded cable, it ensures safe and reliable power transmission. The A key feature adds an extra layer of security. Ideal for electric vehicle charging applications.
GeneralElectricalMechanicalMaterialEnvironmental
General | |
---|---|
Connector Type | Receptacle |
Orientation | Straight |
Number of Positions | 2 |
Contact Size | 3.6mm |
Contact Termination | Crimp |
Key | A |
Color | Orange |
Features | Integrated Internal HVIL |
Electrical | |
---|---|
Rated Voltage | 800V |
Rated Current | 63A |
Shielding | Shielded |
Mechanical | |
---|---|
Mounting Type | Panel Mount |
Mounting Feature | Four Flange |
Wire Gauge or Range | 10mm² |
Material | |
---|---|
Shell Material | PA66+GF |
Contact Material | Copper Alloy |
Contact Finish | Nickel |
Environmental | |
---|---|
Ingress Protection | IP67 |
Operating Temperature | -40°C ~ + 125°C |
Flammability | UL94 V-0 |
Certification
High Voltage Interlock Connectors CE | Download |
