Products > HVIL Series Connector > 3 POS High Power Electric vehicle connector Socket 35A 6mm2 Unsheilded Cable
A Key Box Mount
NI1-1-H036-3AYN-C05

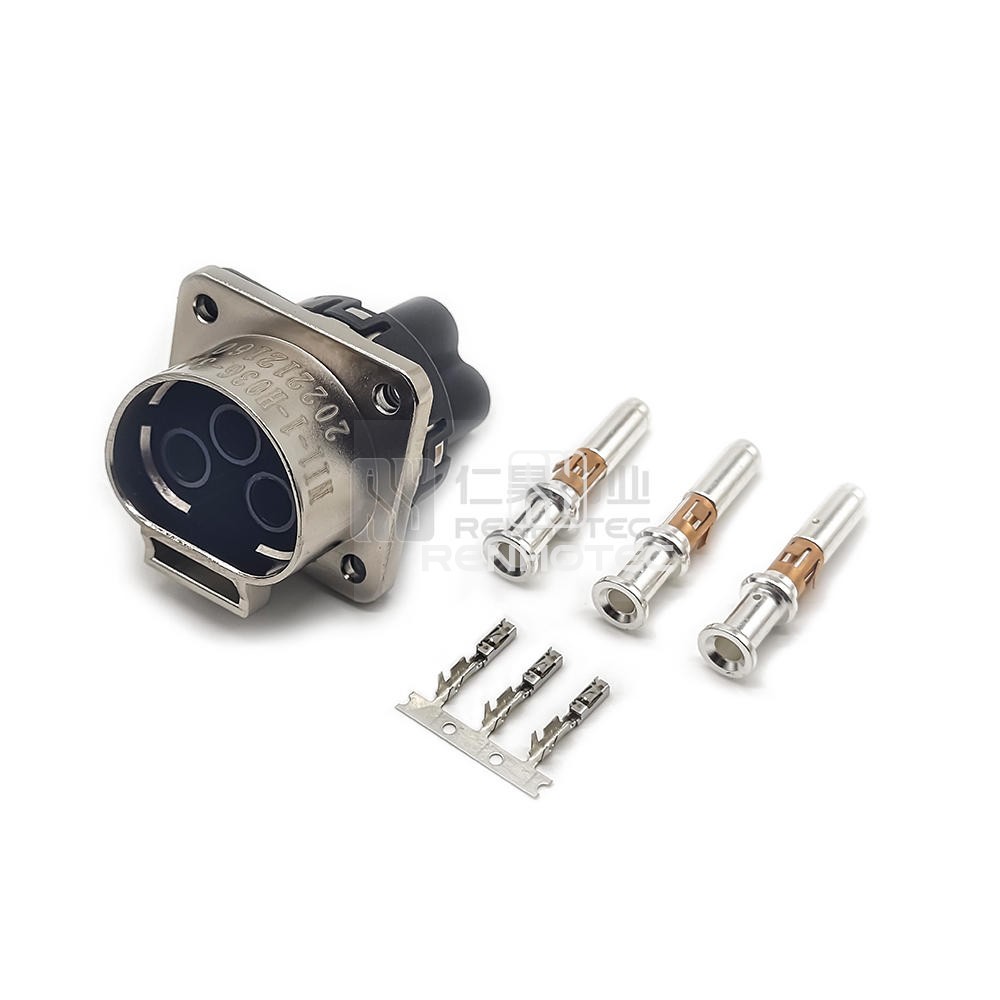

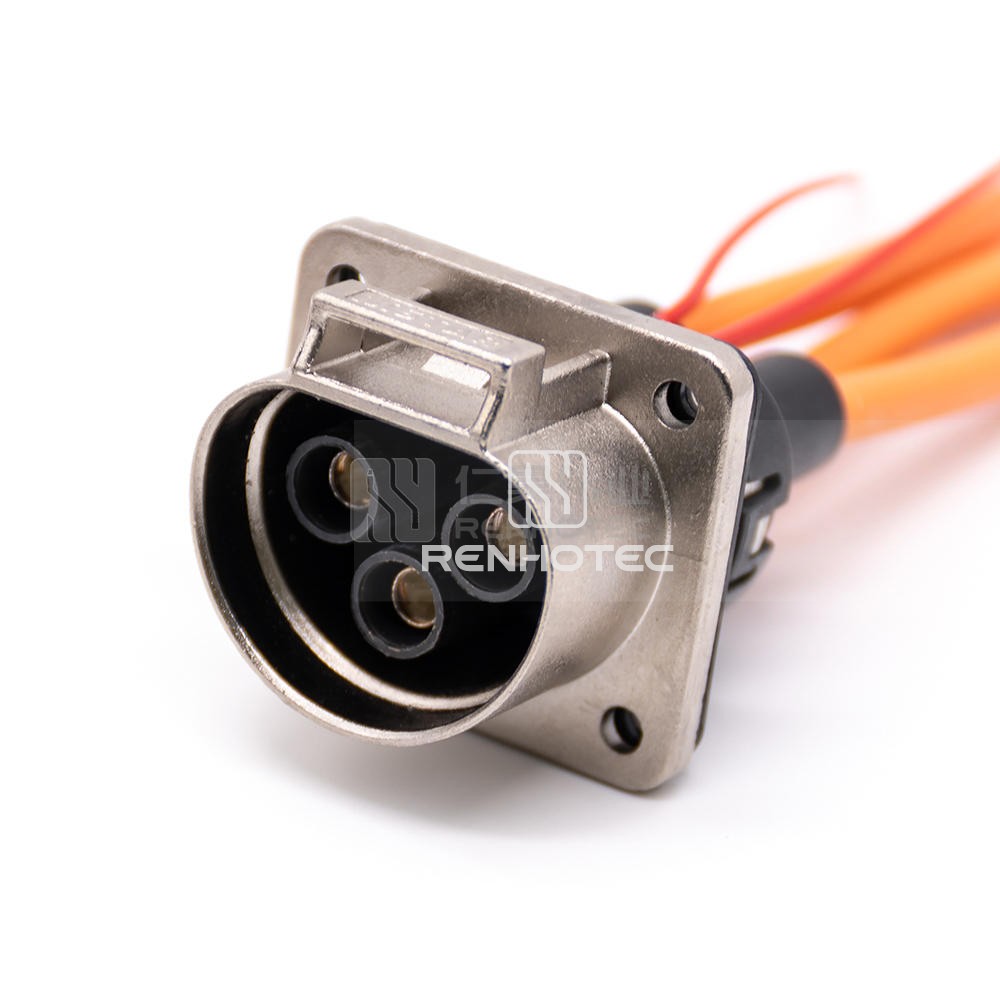

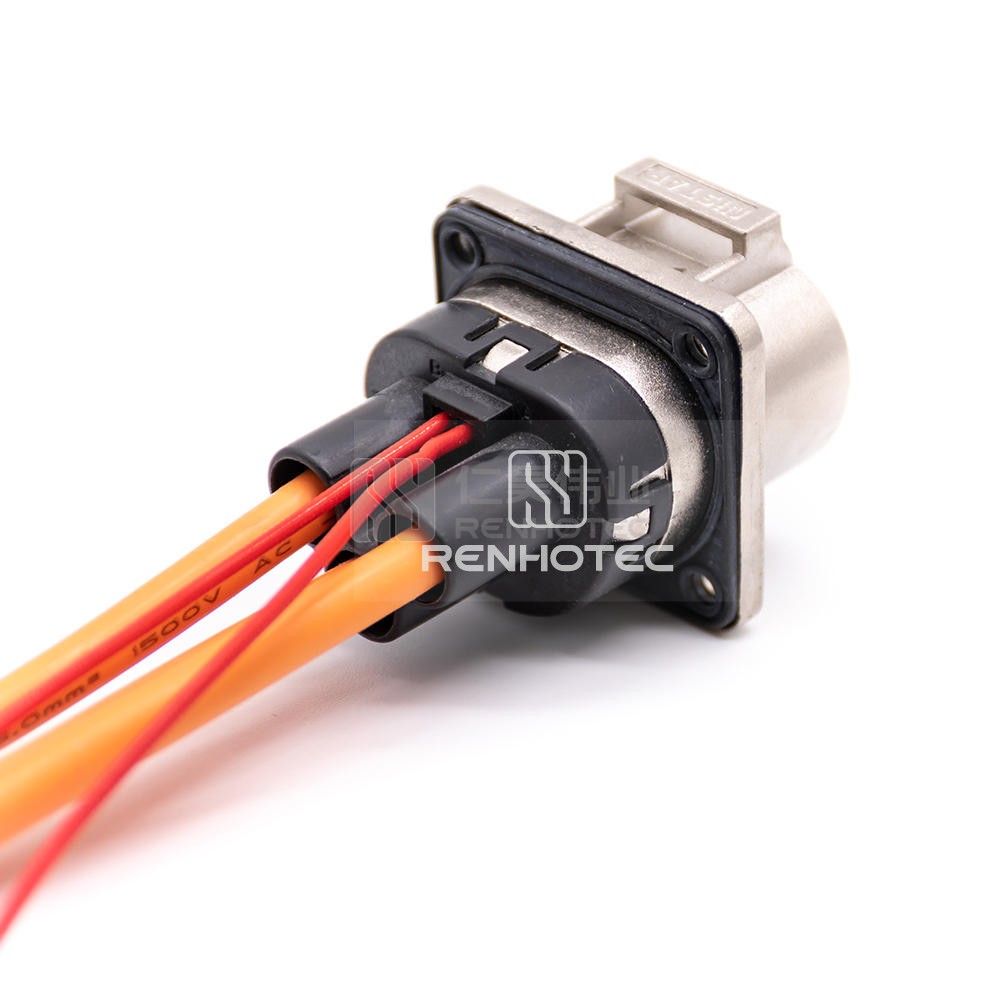

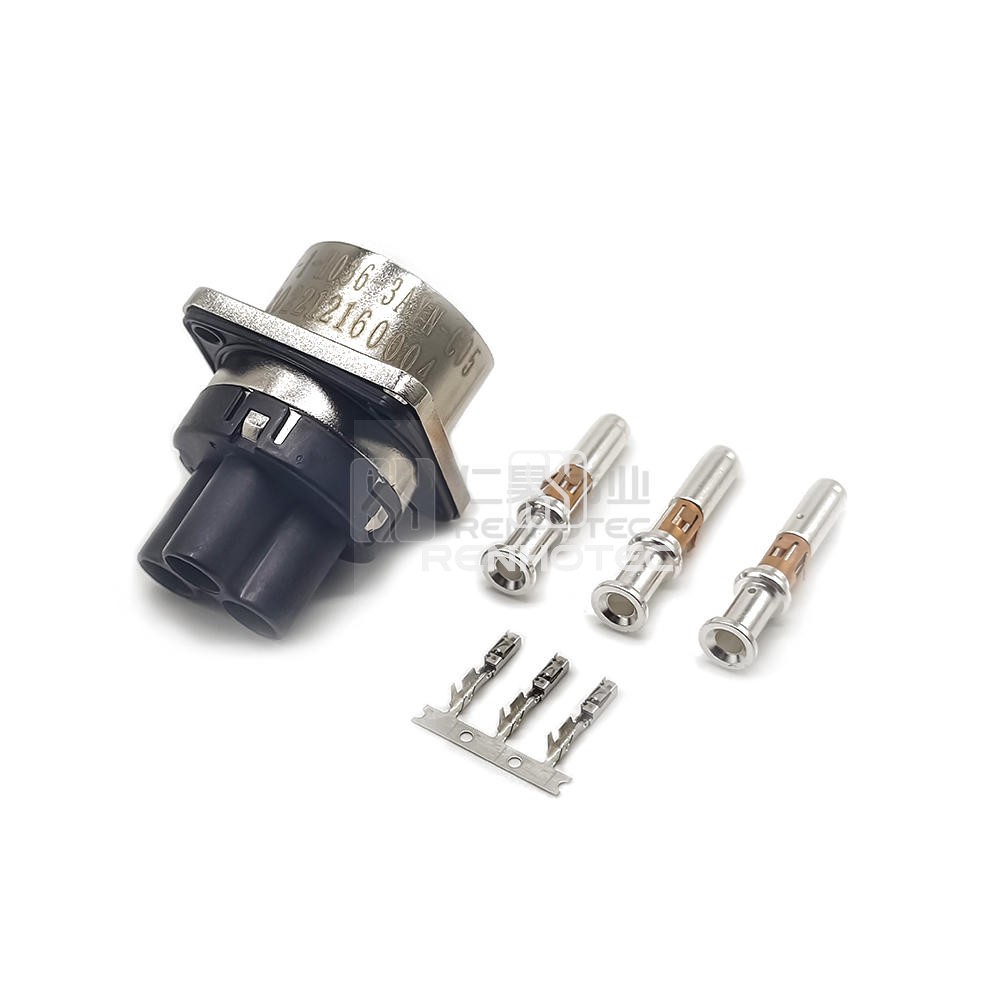

3 POS High Power Electric vehicle connector Socket 35A 6mm2 Unsheilded Cable A Key Box Mount
Get a Quote
- Overview
- Technical data
- Certification
- Download
GeneralElectricalMechanicalMaterialEnvironmental
General | |
---|---|
Connector Type | Receptacle |
Orientation | Straight |
Number of Positions | 3 |
Contact Size | 3.6mm |
Contact Termination | Crimp |
Key | A |
Color | Silver |
Features | Integrated Internal HVIL |
Electrical | |
---|---|
Rated Voltage | 800V |
Rated Current | 35A |
Shielding | Shielded |
Mechanical | |
---|---|
Mounting Type | Panel Mount |
Mounting Feature | Four Flange |
Wire Gauge or Range | 6mm² |
Material | |
---|---|
Shell Material | Zinc Alloy |
Contact Material | Copper Alloy |
Contact Finish | Nickel |
Environmental | |
---|---|
Ingress Protection | IP67 |
Operating Temperature | -40°C ~ + 125°C |
Flammability | UL94 V-0 |
Certification
High Voltage Interlock Connectors CE | Download |
