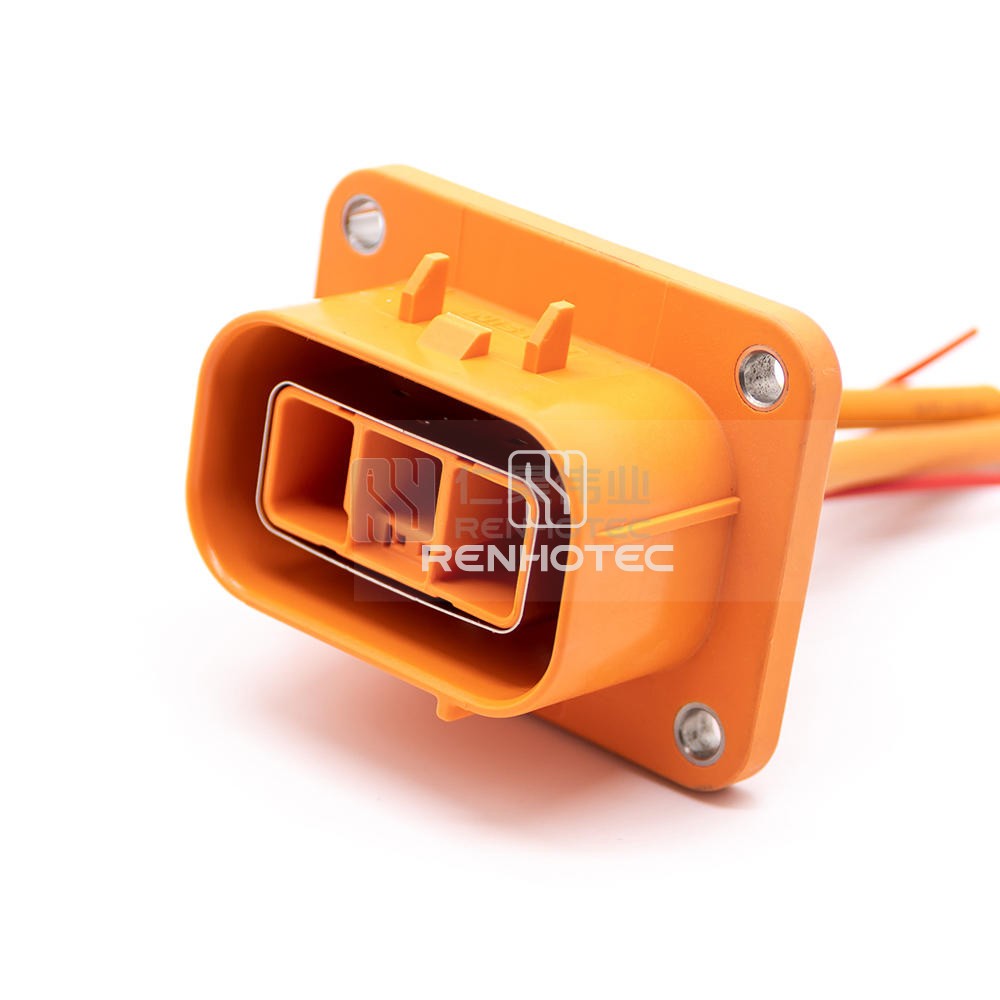

NI2-1-H280-3YYA-C04
3 POS High Voltage Interlock Connector Plastic Receptacle 23A 4mm2 Shielded Cable Y Key- Overview
- Technical data
- Certification
- Download
Product certification
Product excerpt
This high-quality 3 position high voltage interlock connector with a plastic receptacle is designed for 23A applications. It features a 4mm² shielded cable with a convenient Y key design. Ideal for secure power connections in various industrial settings.
GeneralElectricalMechanicalMaterialEnvironmental
General | |
---|---|
Connector Type | Receptacle |
Orientation | Straight |
Number of Positions | 3 |
Contact Size | 2.8mm |
Contact Termination | Crimp |
Key | Y |
Color | Orange |
Features | Integrated Internal HVIL |
Electrical | |
---|---|
Rated Voltage | 800V |
Rated Current | 23A |
Shielding | Shielded |
Mechanical | |
---|---|
Mounting Type | Panel Mount |
Mounting Feature | Four Flange |
Wire Gauge or Range | 4mm² |
Material | |
---|---|
Shell Material | PA66+GF |
Contact Material | Copper Alloy |
Contact Finish | Nickel |
Environmental | |
---|---|
Ingress Protection | IP67 |
Operating Temperature | -40°C ~ + 125°C |
Flammability | UL94 V-0 |
Certification
High Voltage Interlock Connectors CE | Download |
